EC-EARTH4 test preindustrial

Climate metrics

performance indices

Description: Performance Indices normalized to the CMIP6 average for different regions and seasons for ECE-FAST pic1 from 1990-01-01 to 1994-12-31. Processed regions are Global (90°S-90°N), North Midlat (30°N-90°N), Tropical (30°S-30°N) and South Midlat (90°S-30°S).. Numbers < 1 imply better results than CMIP6 mean.

Timestamp: 2025-11-05 12:05:16

global biases

Description: Global mean biases normalized to observed interannual variability with respect to references for different regions and seasons for ECE-FAST pic1 from 1990-01-01 to 1994-12-31. Processed regions are Global (90°S-90°N), North Midlat (30°N-90°N), Tropical (30°S-30°N) and South Midlat (90°S-30°S).

Timestamp: 2025-11-05 12:04:47

Radiation

annual bias

Description: Spatial map of global bias of Surface net short-wave radiation flux from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with CERES from 2000-03-15 to 2025-06-15 used as reference data.

Timestamp: 2025-11-05 12:14:08

Description: Spatial map of global bias of Net cloud radiative effect at TOA (All Sky - Clear Sky) from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with CERES from 2000-03-15 to 2025-06-15 used as reference data.

Timestamp: 2025-11-05 12:19:04

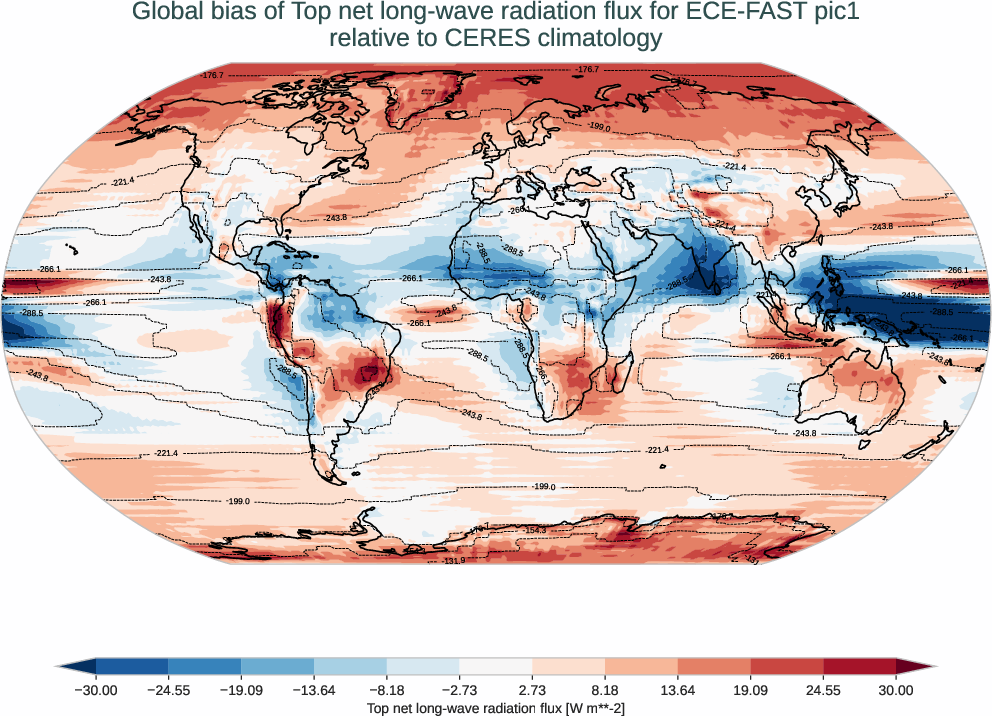

Description: Spatial map of global bias of Top net long-wave radiation flux from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with CERES from 2000-03-15 to 2025-06-15 used as reference data.

Timestamp: 2025-11-05 12:13:13

Description: Spatial map of global bias of Long wave cloud radiative effect at TOA (All Sky - Clear Sky) from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with CERES from 2000-03-15 to 2025-06-15 used as reference data.

Timestamp: 2025-11-05 12:16:46

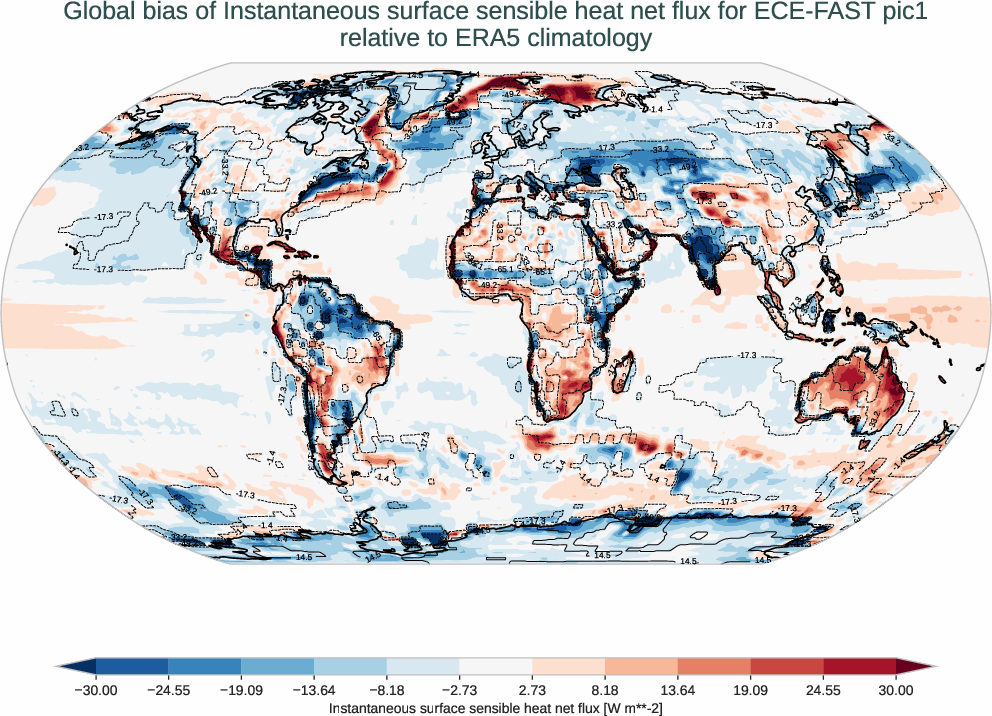

Description: Spatial map of global bias of Instantaneous surface sensible heat net flux from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1940-01-01 to 2024-12-01 used as reference data.

Timestamp: 2025-11-05 12:16:50

Description: Spatial map of global bias of Top net radiation from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with CERES from 2000-03-15 to 2025-06-15 used as reference data.

Timestamp: 2025-11-05 12:15:26

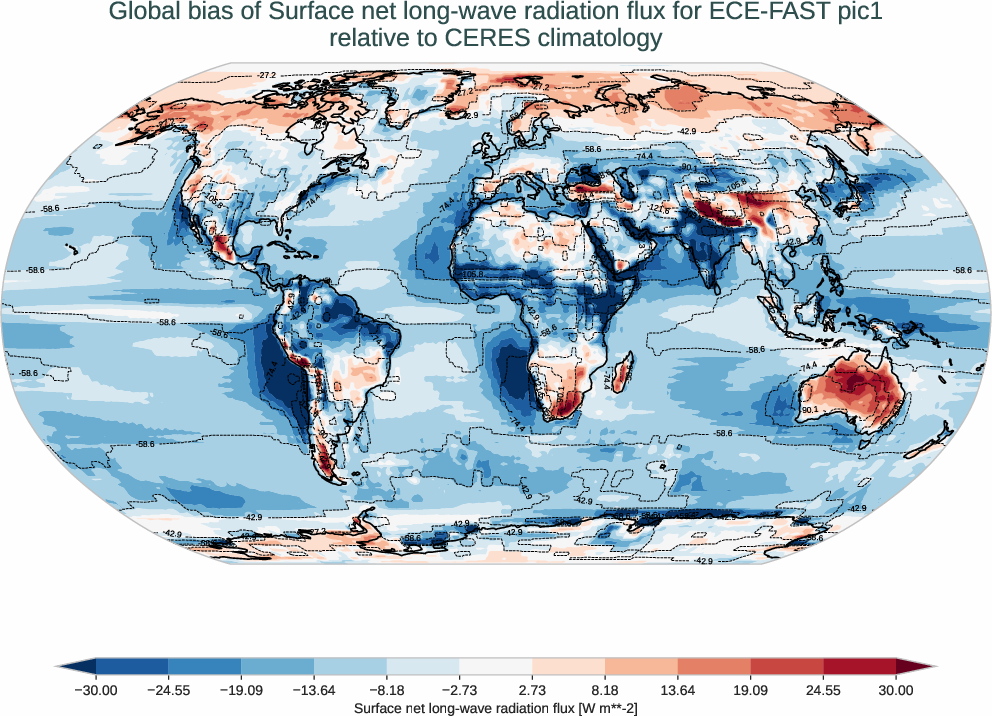

Description: Spatial map of global bias of Surface net long-wave radiation flux from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with CERES from 2000-03-15 to 2025-06-15 used as reference data.

Timestamp: 2025-11-05 12:13:14

Description: Spatial map of global bias of Short wave cloud radiative effect at TOA (All Sky - Clear Sky) from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with CERES from 2000-03-15 to 2025-06-15 used as reference data.

Timestamp: 2025-11-05 12:17:48

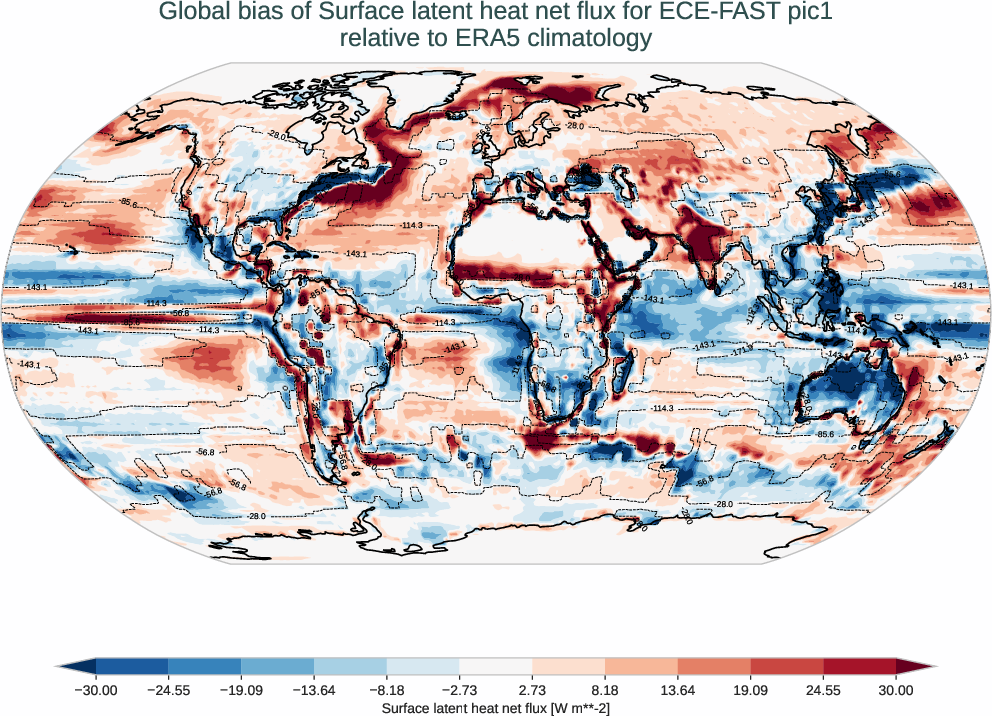

Description: Spatial map of global bias of Surface latent heat net flux from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1940-01-01 to 2024-12-01 used as reference data.

Timestamp: 2025-11-05 12:15:23

Description: Spatial map of global bias of Top net short-wave radiation flux from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with CERES from 2000-03-15 to 2025-06-15 used as reference data.

Timestamp: 2025-11-05 12:14:04

seasonal bias

Description: Seasonal bias map of Short wave cloud radiative effect at TOA (All Sky - Clear Sky) for the ECE-FAST model, experiment pic1, using CERES as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 2000-03-15 to 2025-06-15 for the reference data.

Timestamp: 2025-11-05 12:18:19

Description: Seasonal bias map of Surface net long-wave radiation flux for the ECE-FAST model, experiment pic1, using CERES as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 2000-03-15 to 2025-06-15 for the reference data.

Timestamp: 2025-11-05 12:13:40

Description: Seasonal bias map of Instantaneous surface sensible heat net flux for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1940-01-01 to 2024-12-01 for the reference data.

Timestamp: 2025-11-05 12:17:35

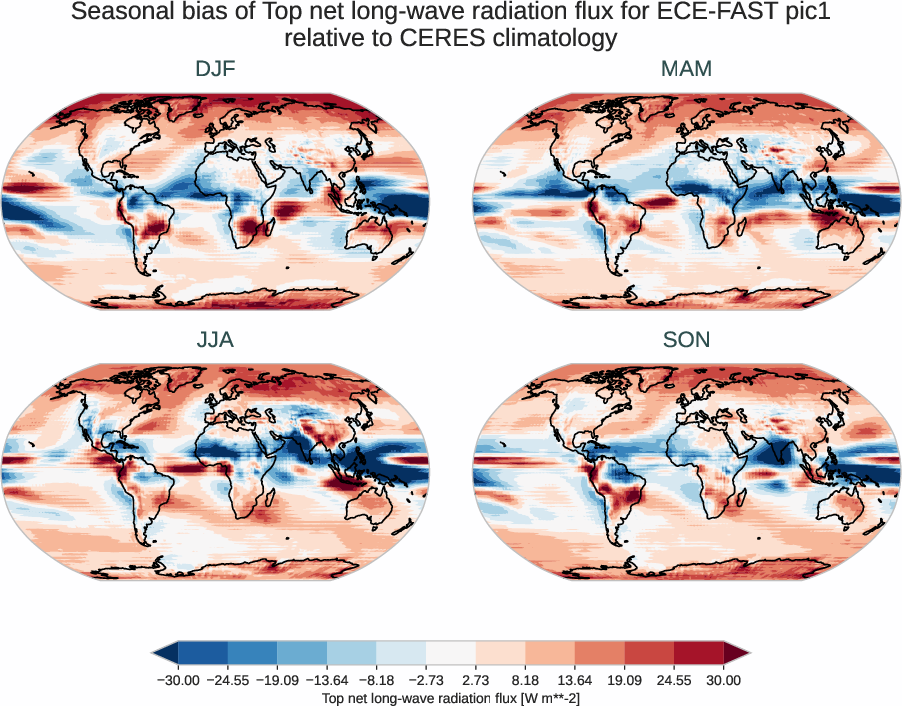

Description: Seasonal bias map of Top net long-wave radiation flux for the ECE-FAST model, experiment pic1, using CERES as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 2000-03-15 to 2025-06-15 for the reference data.

Timestamp: 2025-11-05 12:13:36

Description: Seasonal bias map of Surface latent heat net flux for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1940-01-01 to 2024-12-01 for the reference data.

Timestamp: 2025-11-05 12:16:11

Description: Seasonal bias map of Top net radiation for the ECE-FAST model, experiment pic1, using CERES as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 2000-03-15 to 2025-06-15 for the reference data.

Timestamp: 2025-11-05 12:16:02

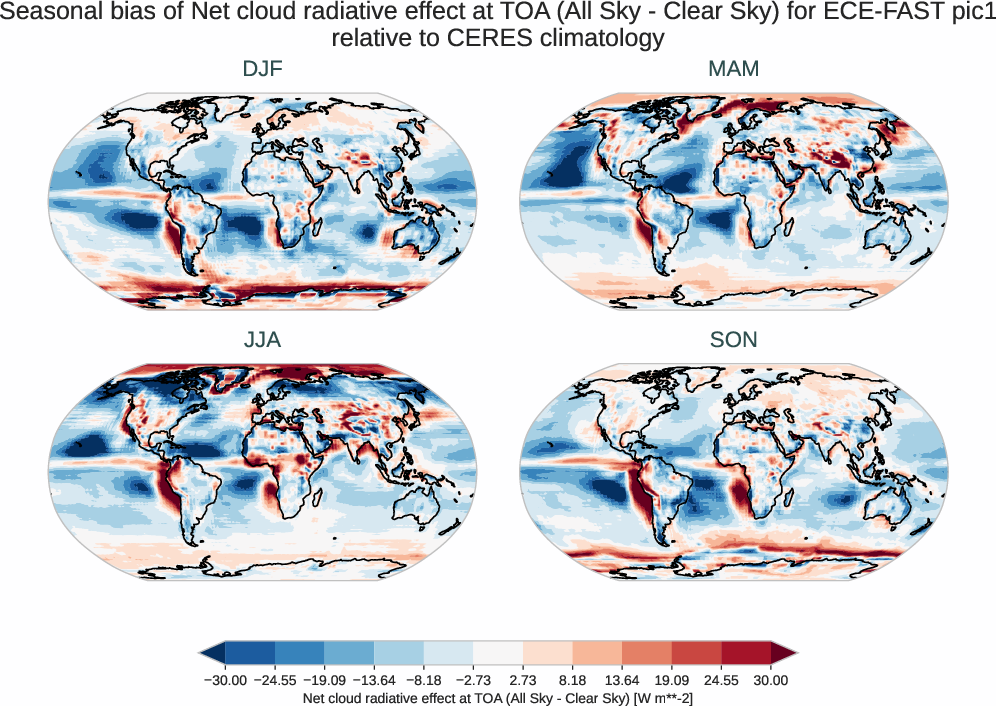

Description: Seasonal bias map of Net cloud radiative effect at TOA (All Sky - Clear Sky) for the ECE-FAST model, experiment pic1, using CERES as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 2000-03-15 to 2025-06-15 for the reference data.

Timestamp: 2025-11-05 12:19:34

Description: Seasonal bias map of Surface net short-wave radiation flux for the ECE-FAST model, experiment pic1, using CERES as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 2000-03-15 to 2025-06-15 for the reference data.

Timestamp: 2025-11-05 12:14:39

Description: Seasonal bias map of Top net short-wave radiation flux for the ECE-FAST model, experiment pic1, using CERES as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 2000-03-15 to 2025-06-15 for the reference data.

Timestamp: 2025-11-05 12:14:39

Description: Seasonal bias map of Long wave cloud radiative effect at TOA (All Sky - Clear Sky) for the ECE-FAST model, experiment pic1, using CERES as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 2000-03-15 to 2025-06-15 for the reference data.

Timestamp: 2025-11-05 12:17:09

Atmosphere 2D

annual bias

Description: Spatial map of global bias of 2 metre temperature from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with BERKELEY-EARTH from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:05:18

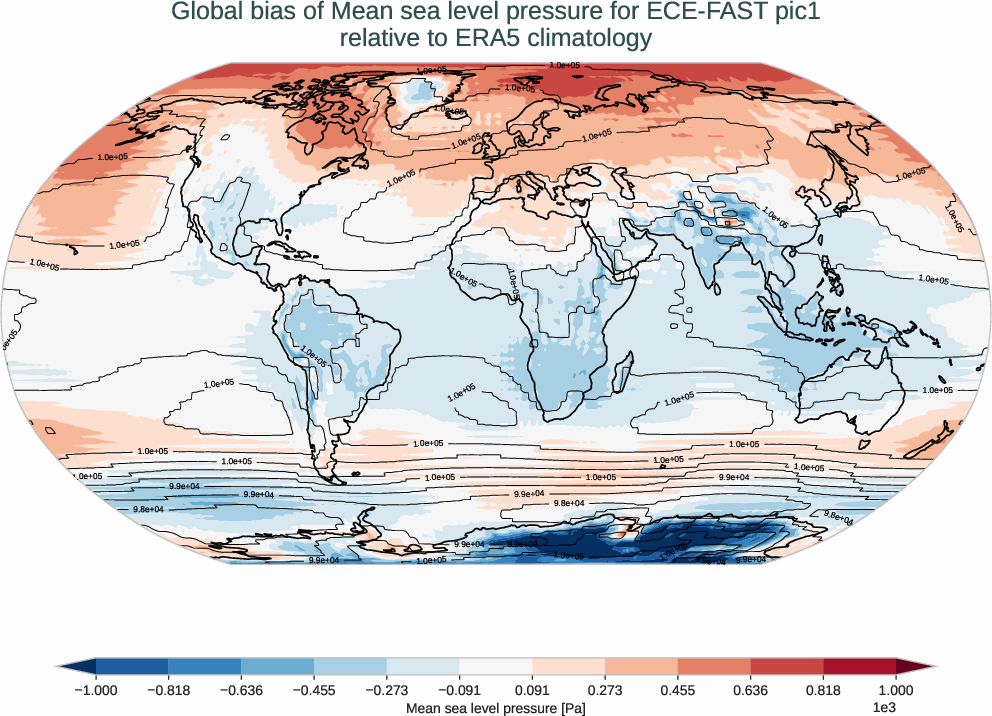

Description: Spatial map of global bias of Mean sea level pressure from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:06:19

seasonal bias

Description: Seasonal bias map of 2 metre temperature for the ECE-FAST model, experiment pic1, using BERKELEY-EARTH as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:05:48

Description: Seasonal bias map of Mean sea level pressure for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:06:39

profiles

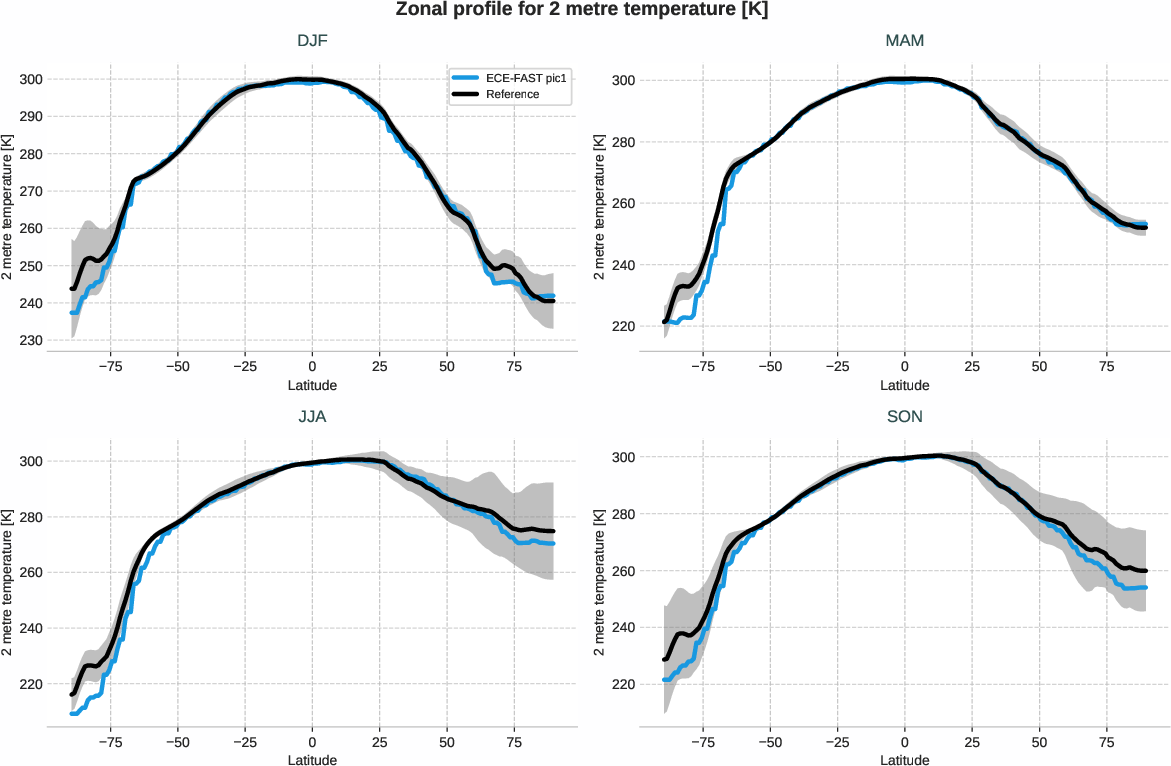

Description: Seasonal zonal profile of 2 metre temperature [K] for ece4-tuning ECE-FAST pic1 compared to obs BERKELEY-EARTH aqua-filled with ±2σ uncertainty bands.

Timestamp: 2025-11-05 12:09:58

Description: Seasonal zonal profile of 2 metre temperature [K] over Tropics for ece4-tuning ECE-FAST pic1 compared to obs BERKELEY-EARTH aqua-filled with ±2σ uncertainty bands.

Timestamp: 2025-11-05 12:10:43

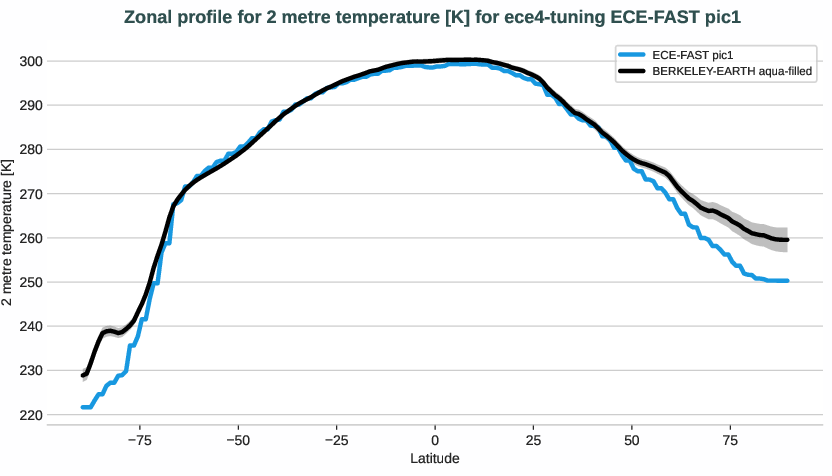

Description: Zonal profile of 2 metre temperature [K] for ece4-tuning ECE-FAST pic1 with ±2σ uncertainty bands computed over 1979-01-16 to 2024-12-16. with standard deviation bands

Timestamp: 2025-11-05 12:09:56

Description: Zonal profile of 2 metre temperature [K] over Tropics for ece4-tuning ECE-FAST pic1 with ±2σ uncertainty bands computed over 1979-01-16 to 2024-12-16. with standard deviation bands

Timestamp: 2025-11-05 12:10:39

Atmosphere 3D

vertical bias

Description: Vertical bias plot of U component of wind across pressure levels from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:08:23

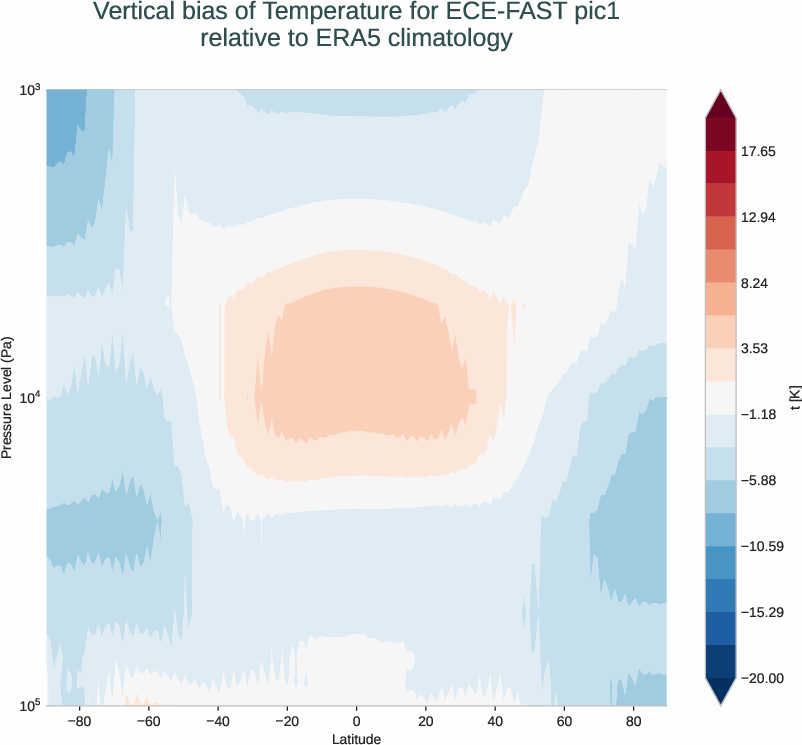

Description: Vertical bias plot of Temperature across pressure levels from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:06:37

Description: Vertical bias plot of Specific humidity across pressure levels from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:12:16

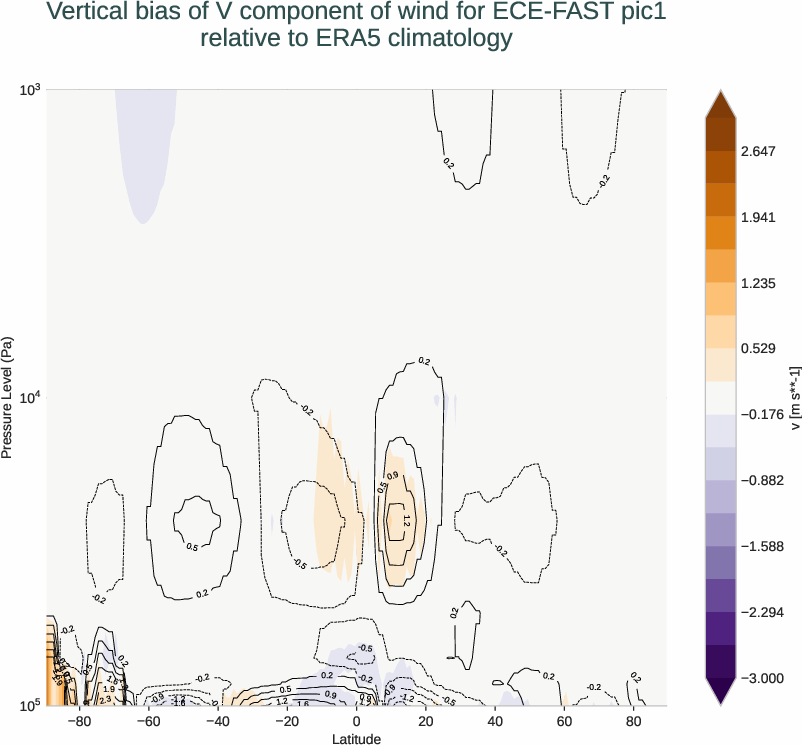

Description: Vertical bias plot of V component of wind across pressure levels from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:10:32

annual bias

Description: Spatial map of global bias of V component of wind at 200 hPa from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:09:59

Description: Spatial map of global bias of Temperature at 200 hPa from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:06:17

Description: Spatial map of global bias of U component of wind at 200 hPa from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:07:51

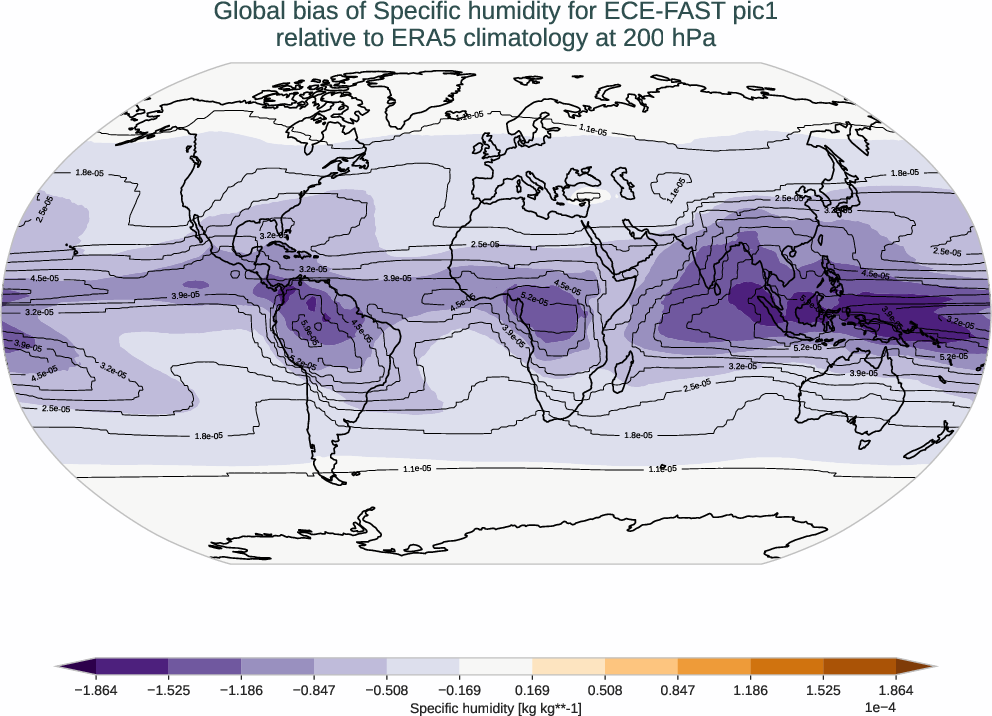

Description: Spatial map of global bias of Specific humidity at 200 hPa from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:11:42

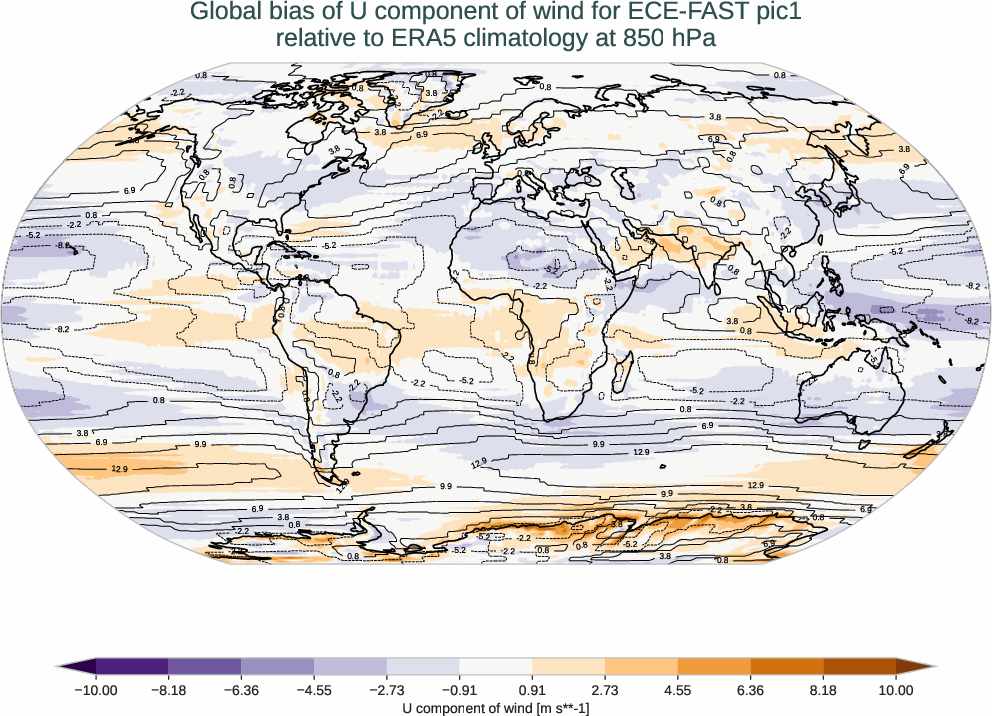

Description: Spatial map of global bias of U component of wind at 850 hPa from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:07:17

Description: Spatial map of global bias of Temperature at 850 hPa from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:05:44

Description: Spatial map of global bias of V component of wind at 850 hPa from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:09:10

Description: Spatial map of global bias of Specific humidity at 850 hPa from 1990-01-16 to 1999-12-16 for the ECE-FAST model, experiment pic1, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.

Timestamp: 2025-11-05 12:11:21

seasonal bias

Description: Seasonal bias map of Temperature at 850 hPa for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:06:05

Description: Seasonal bias map of U component of wind at 850 hPa for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:07:38

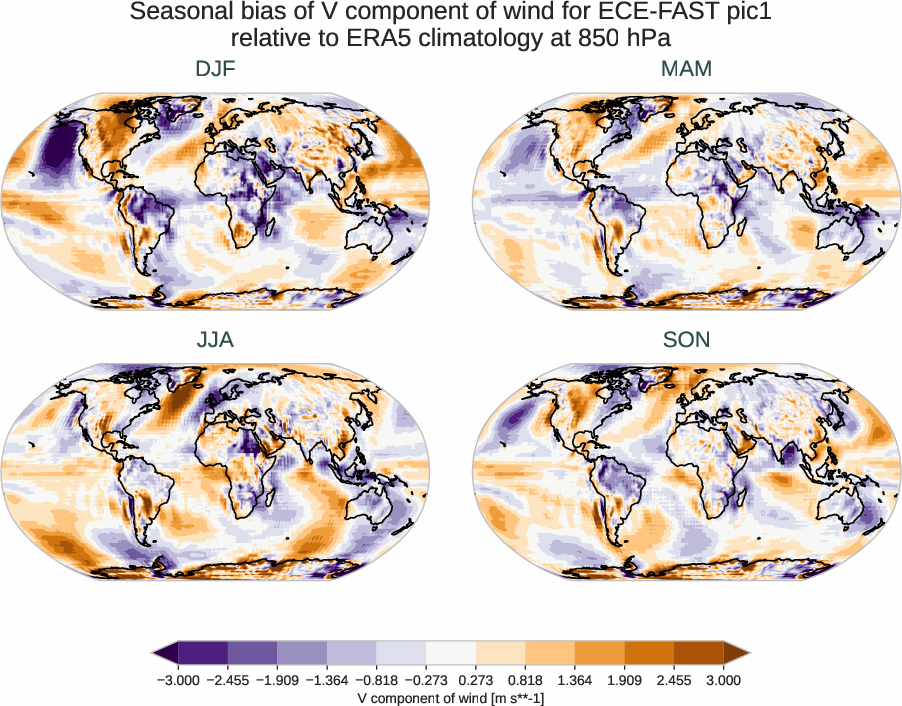

Description: Seasonal bias map of V component of wind at 850 hPa for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:09:43

Description: Seasonal bias map of Specific humidity at 850 hPa for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:11:33

Description: Seasonal bias map of V component of wind at 200 hPa for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:10:21

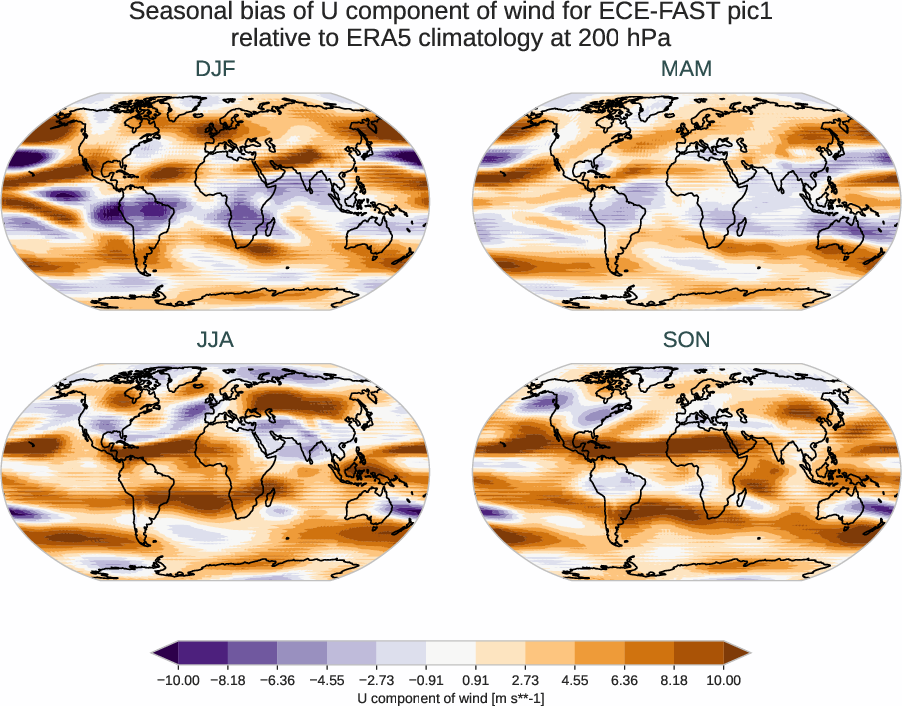

Description: Seasonal bias map of U component of wind at 200 hPa for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:08:13

Description: Seasonal bias map of Temperature at 200 hPa for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:06:28

Description: Seasonal bias map of Specific humidity at 200 hPa for the ECE-FAST model, experiment pic1, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 1999-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.

Timestamp: 2025-11-05 12:11:51

Teleconnections

NAO

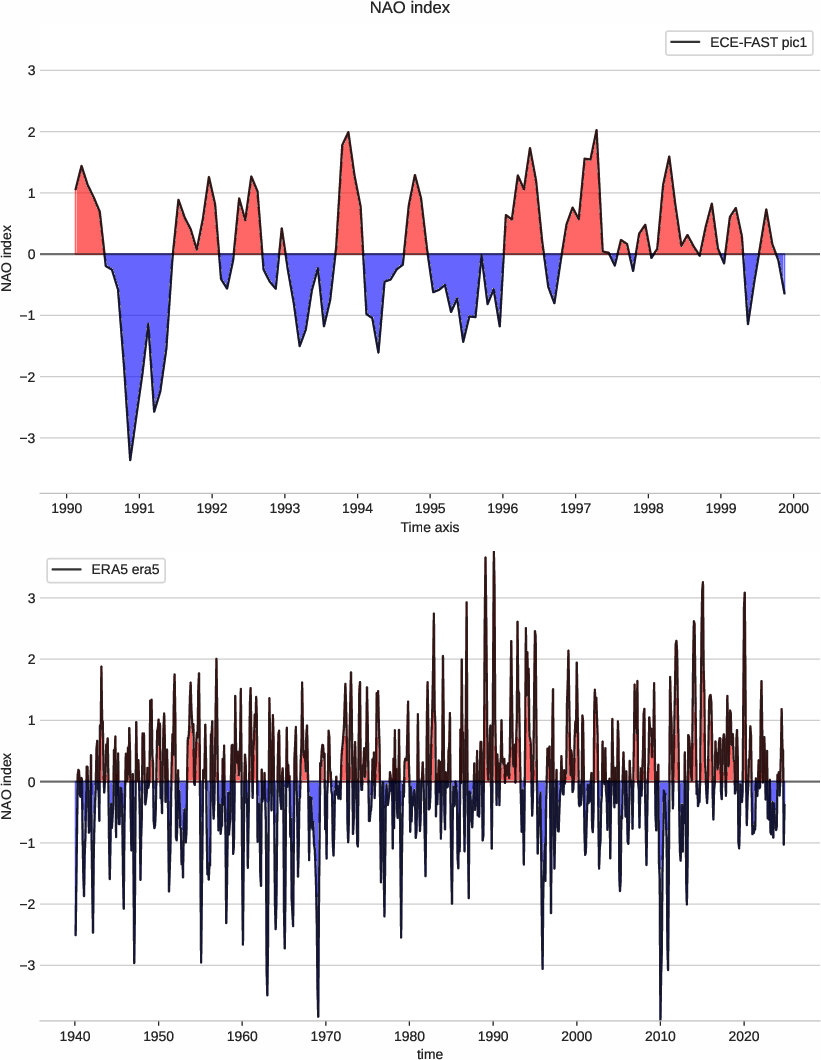

Description: NAO index for ECE-FAST pic1 using reference data from ERA5 era5.

Timestamp: 2025-11-05 12:05:23

Description: NAO regression map (msl) ECE-FAST pic1 (DJF) compared to ERA5 era5. The contour lines are the model regression map and the filled contour map is the defference between the model and the reference regression map.

Timestamp: 2025-11-05 12:05:38

Description: NAO correlation map (Correlation of Mean sea level pressure with index evaluated with Mean sea level pressure) ECE-FAST pic1 (DJF) compared to ERA5 era5. The contour lines are the model regression map and the filled contour map is the defference between the model and the reference correlation map.

Timestamp: 2025-11-05 12:05:38
