EC-EARTH4 tuning test run
Climate metrics
performance indices
Description: Performance Indices normalized to the CMIP6 average for different regions and seasons for ECE-FAST T021 from 1990-01-01 to 2139-12-31. Processed regions are Global (90°S-90°N), North Midlat (30°N-90°N), Tropical (30°S-30°N) and South Midlat (90°S-30°S).. Numbers < 1 imply better results than CMIP6 mean.
Timestamp: 2025-10-30 10:12:51
global biases

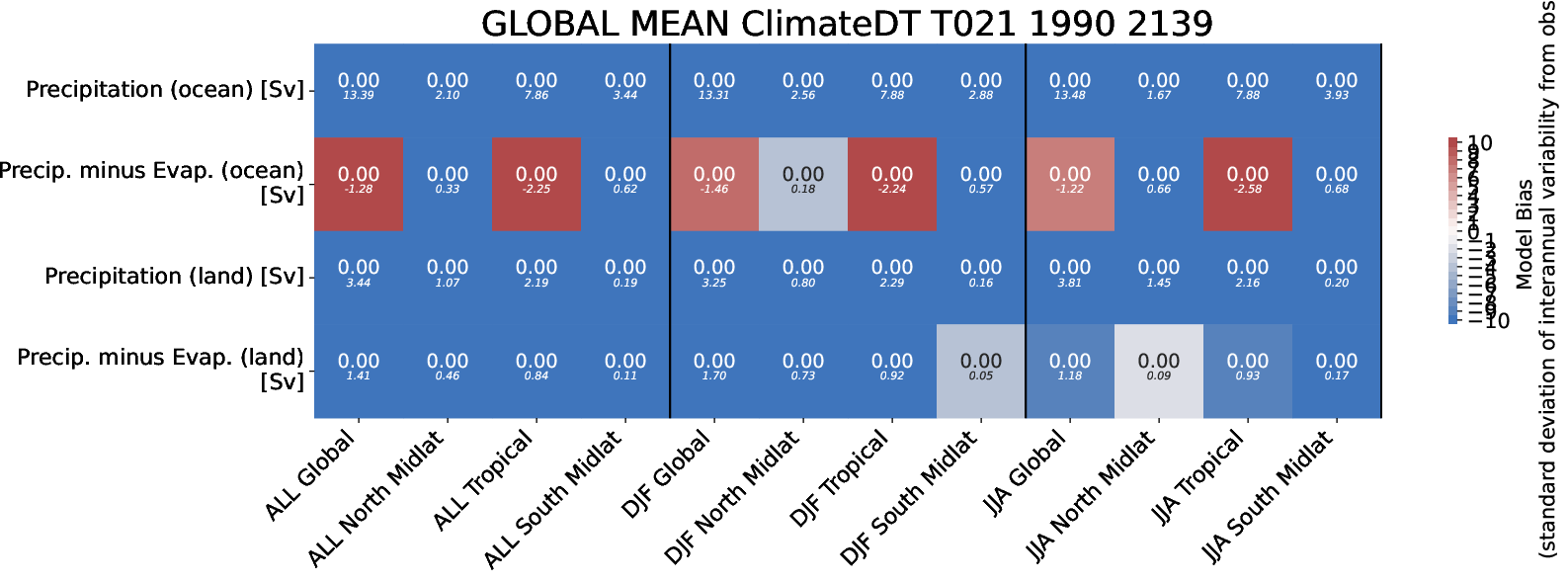

Description: Global mean biases normalized to observed interannual variability with respect to references for different regions and seasons for ECE-FAST T021 from 1990-01-01 to 2139-12-31. Processed regions are Global (90°S-90°N), North Midlat (30°N-90°N), Tropical (30°S-30°N) and South Midlat (90°S-30°S).
Timestamp: 2025-10-30 10:02:58
Atmosphere 2D
time series

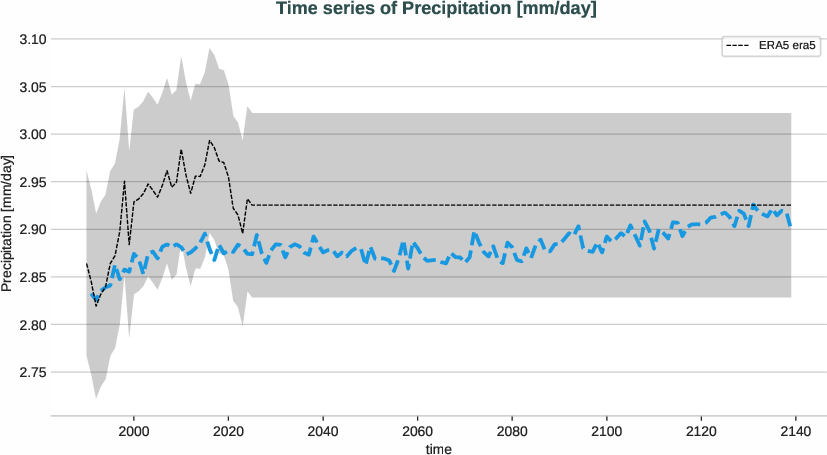

Description: Time series of Precipitation [mm/day] (tprate) for with reference ERA5 with standard deviation from 19900101 to 20201231. The shaded area represents 2 standard deviations.
Timestamp: 2025-10-30 10:14:51

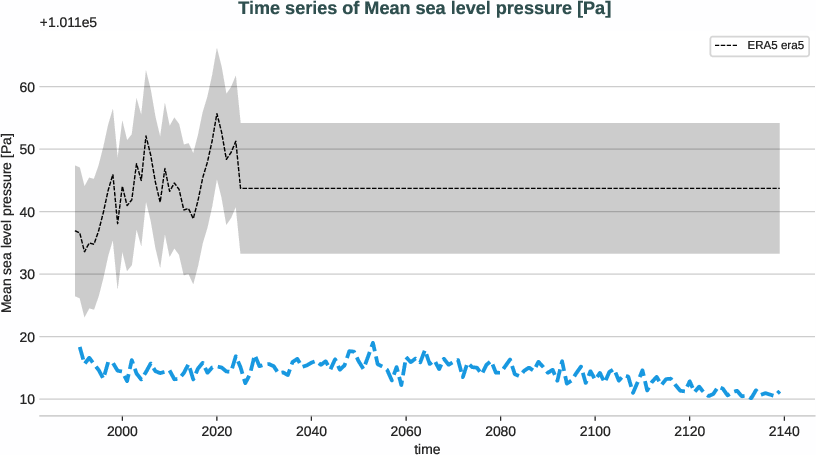

Description: Time series of Mean sea level pressure [Pa] (msl) for with reference ERA5 with standard deviation from 19900101 to 20201231. The shaded area represents 2 standard deviations.
Timestamp: 2025-10-30 10:09:33

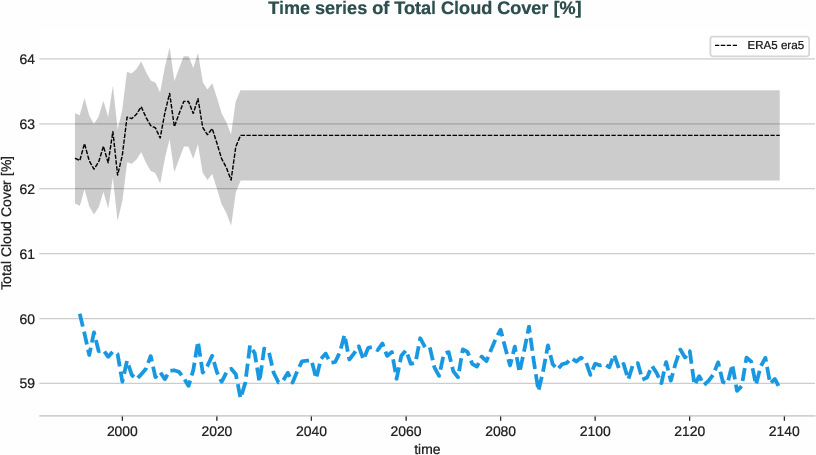

Description: Time series of Total Cloud Cover [%] (tcc) for with reference ERA5 with standard deviation from 19900101 to 20201231. The shaded area represents 2 standard deviations.
Timestamp: 2025-10-30 10:19:28

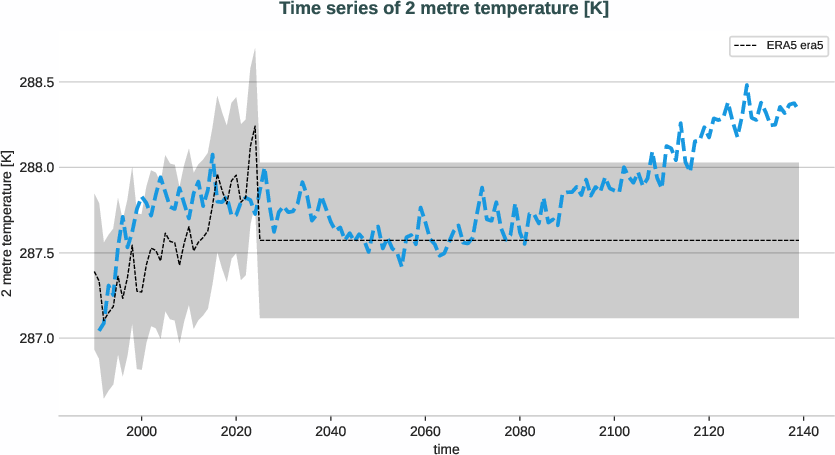

Description: Time series of 2 metre temperature [K] (2t) for with reference ERA5 with standard deviation from 19900101 to 20201231. The shaded area represents 2 standard deviations.
Timestamp: 2025-10-30 10:00:02
Description: Time series of Instantaneous moisture flux [kg m**-2 s**-1] (ie) for with reference ERA5 with standard deviation from 19900101 to 20201231. The shaded area represents 2 standard deviations.
Timestamp: 2025-10-30 10:04:47
annual bias
Description: Spatial map of global bias of Total precipitation rate from 1990-01-16 to 2139-12-16 for the ECE-FAST model, experiment T021, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-10-30 10:00:18
seasonal bias

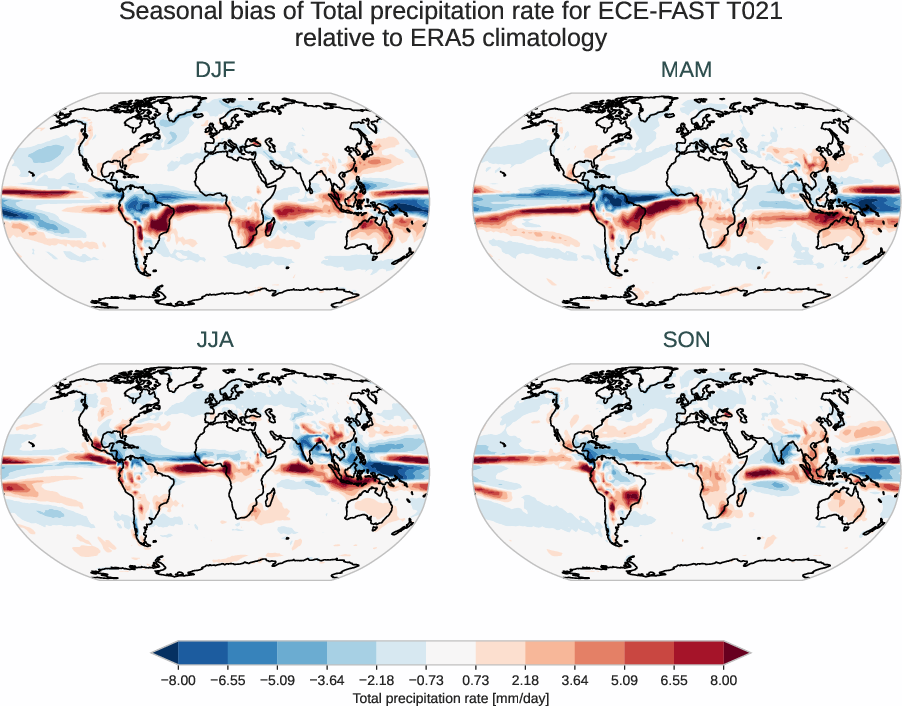

Description: Seasonal bias map of Total precipitation rate for the ECE-FAST model, experiment T021, using ERA5 as reference data. The bias is computed for each season over the period from 1990-01-16 to 2139-12-16 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-10-30 10:00:41
Ocean 2D
time series

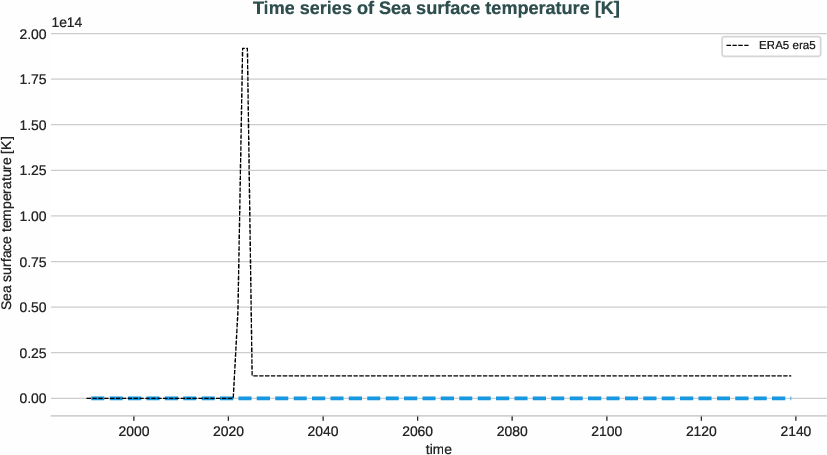

Description: Time series of Sea surface temperature [K] (tos) for with reference ERA5 with standard deviation from 19900101 to 20201231. The shaded area represents 2 standard deviations.
Timestamp: 2025-10-30 10:24:23
Ocean 3D
Hovmöller

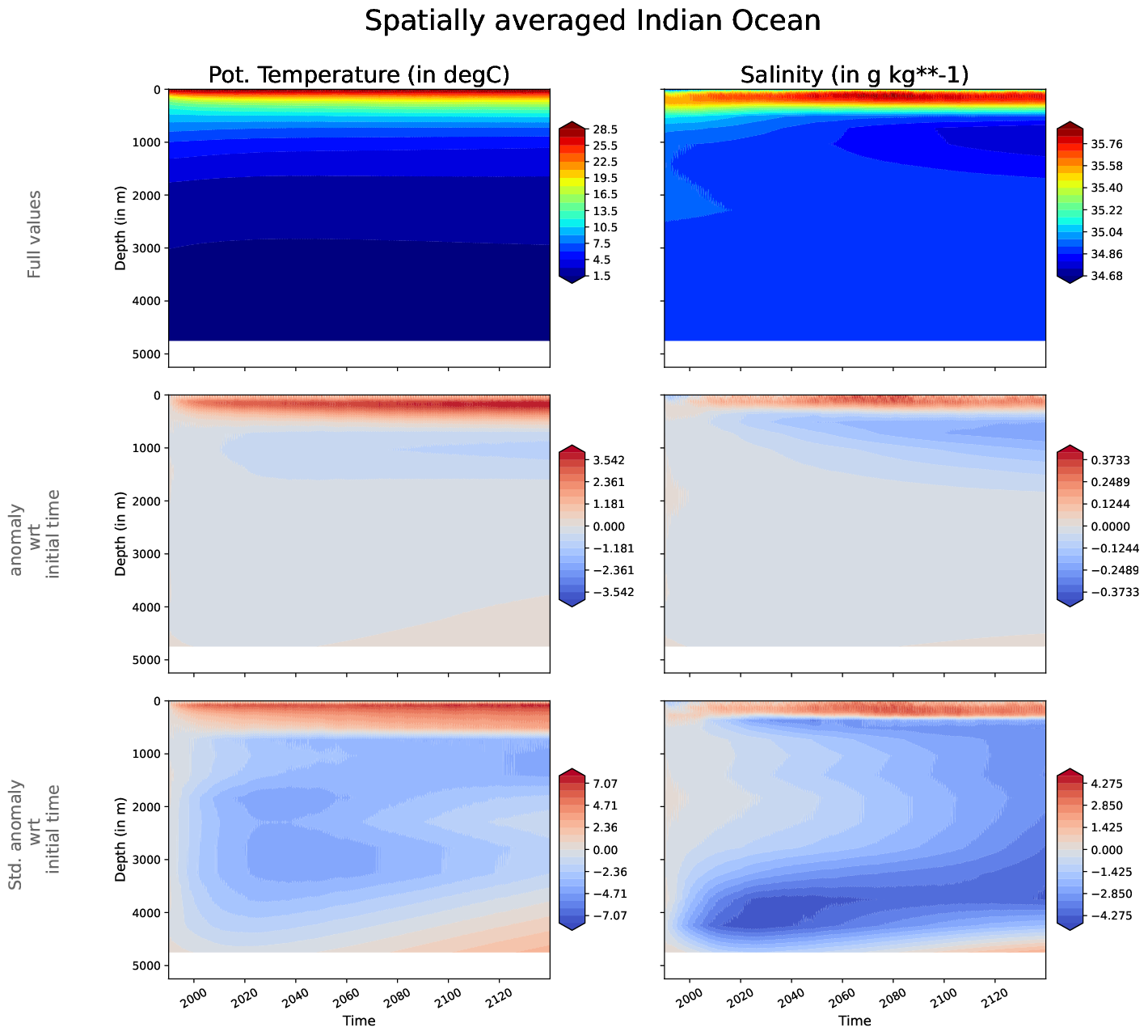

Description: Spatially averaged Indian Ocean
Sea Ice
time series

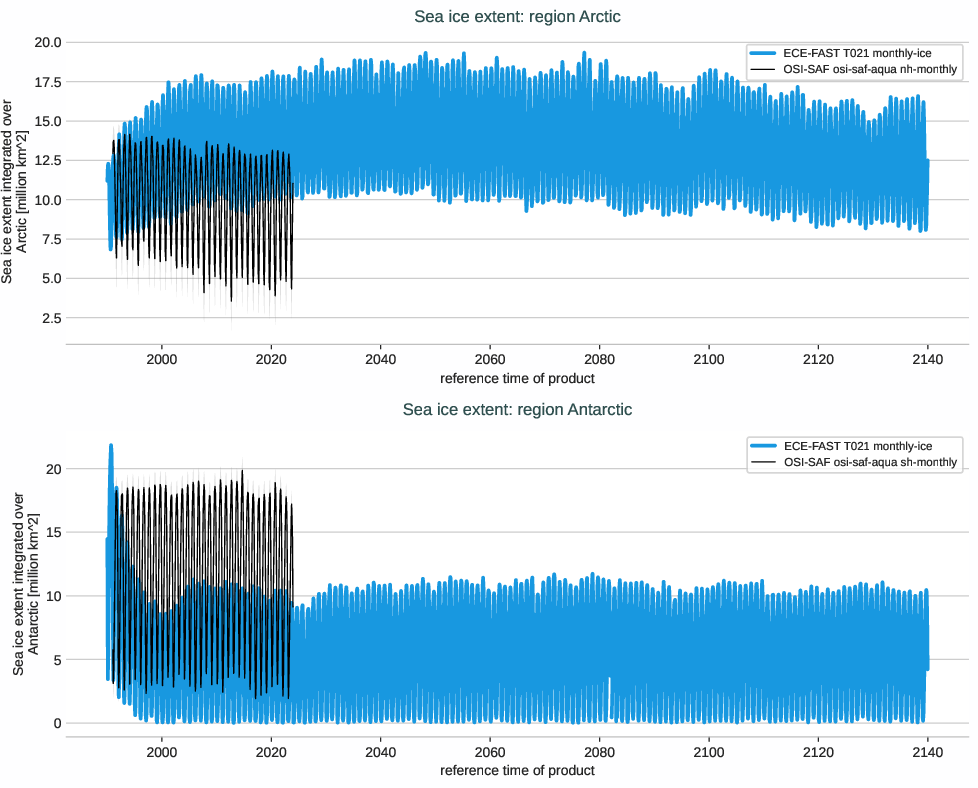

Description: Time series of the Sea ice extent integrated over Arctic and Antarctic regions. ECE-FAST T021 monthly-ice from 1990-01-16 to 2139-12-16 is used as model data. OSI-SAF osi-saf-aqua nh-monthly and OSI-SAF osi-saf-aqua sh-monthly are used as reference data for the respective regions. Reference data std ranges from 1991-01-01 to 2024-01-01.
Timestamp: 2025-10-30 15:07:32

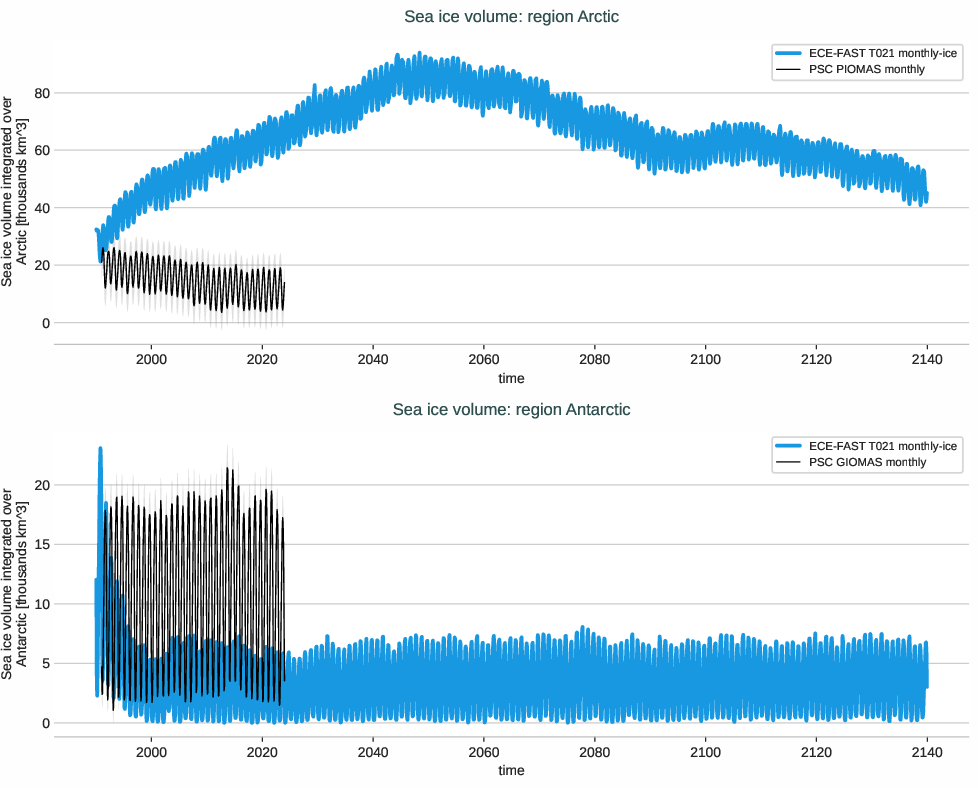

Description: Time series of the Sea ice volume integrated over Arctic and Antarctic regions. ECE-FAST T021 monthly-ice from 1990-01-16 to 2139-12-16 is used as model data. PSC PIOMAS monthly and PSC GIOMAS monthly are used as reference data for the respective regions. Reference data std ranges from 1991-01-01 to 2024-01-01.
Timestamp: 2025-10-30 15:10:37
seasonal cycle

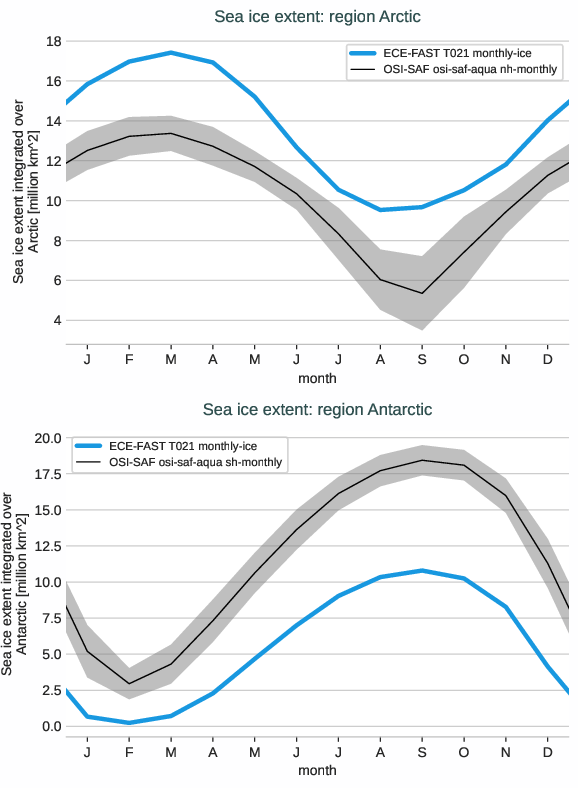

Description: Seasonal cycle of the Sea ice extent integrated over Arctic and Antarctic regions. ECE-FAST T021 monthly-ice from 1990-01-16 to 2139-12-16 is used as model data. OSI-SAF osi-saf-aqua nh-monthly and OSI-SAF osi-saf-aqua sh-monthly are used as reference data for the respective regions. Reference data std ranges from 1991-01-01 to 2024-01-01.
Timestamp: 2025-10-30 15:12:51

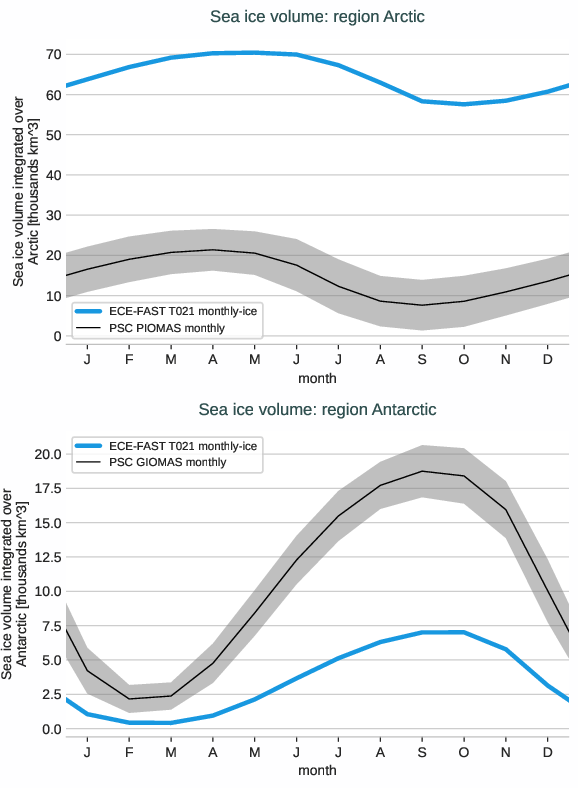

Description: Seasonal cycle of the Sea ice volume integrated over Arctic and Antarctic regions. ECE-FAST T021 monthly-ice from 1990-01-16 to 2139-12-16 is used as model data. PSC PIOMAS monthly and PSC GIOMAS monthly are used as reference data for the respective regions. Reference data std ranges from 1991-01-01 to 2024-01-01.
Timestamp: 2025-10-30 15:16:17
bias

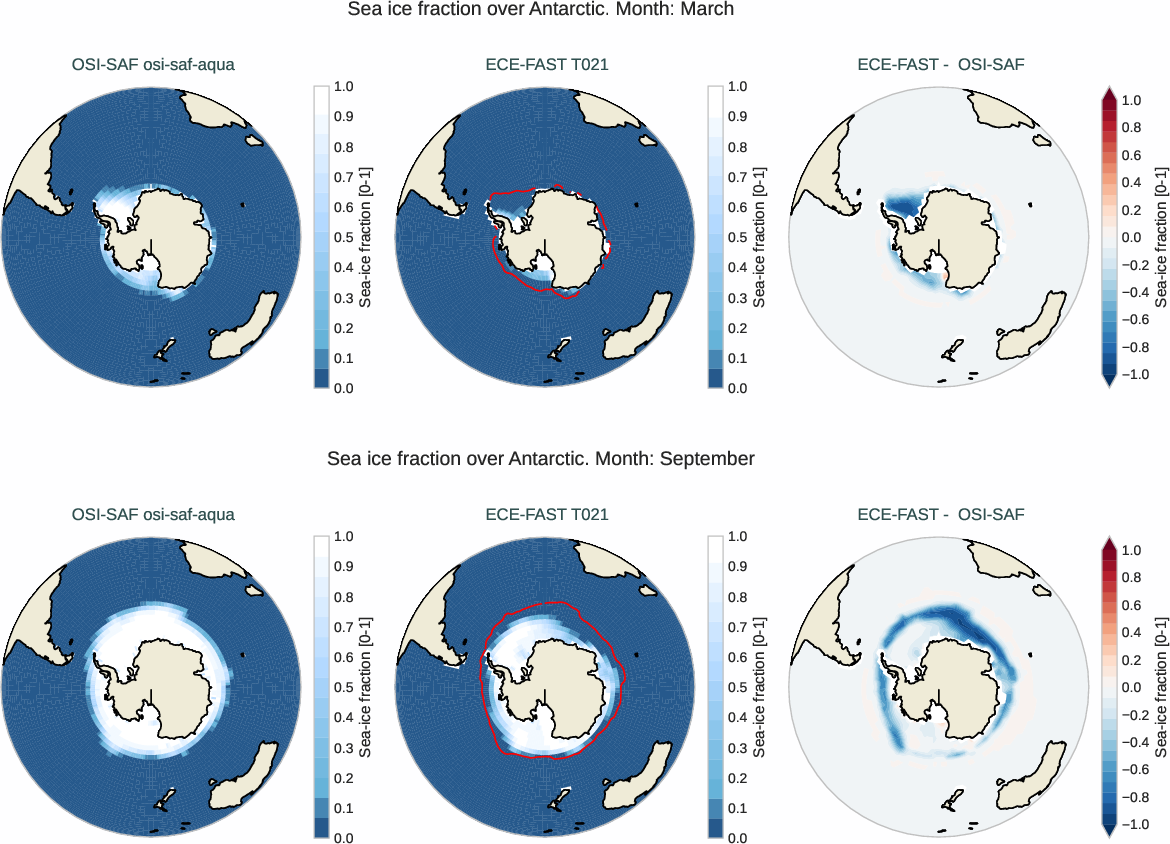

Description: Spatial map and total bias of the sea ice fraction climatology in the Antarctic region. The model data is ECE-FAST with experiment T021 spanning from 1990-01-16T12:00:00 to 2139-12-16T12:00:00. The reference dataset is OSI-SAF with experiment osi-saf-aqua spanning from 1991-01-01 to 2024-12-31. The red contour line represents the regional sea ice fraction equal to 0.2.
Timestamp: 2025-10-30 15:17:44
Description: Spatial map and total bias of the sea ice thickness climatology in the Arctic region. The model data is ECE-FAST with experiment T021 spanning from 1990-01-16T12:00:00 to 2139-12-16T12:00:00. The reference dataset is PSC with experiment PIOMAS spanning from 1991-01-01 to 2024-12-31.
Timestamp: 2025-10-30 15:19:07

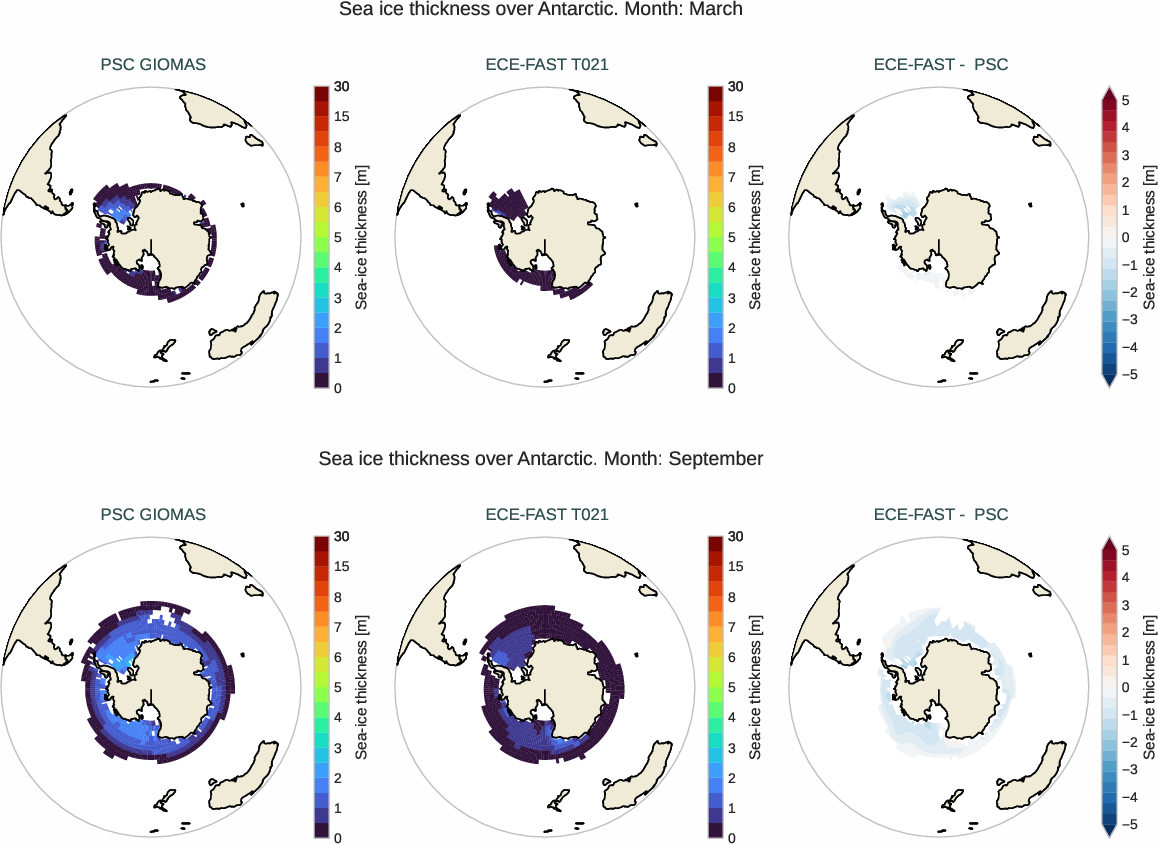

Description: Spatial map and total bias of the sea ice thickness climatology in the Antarctic region. The model data is ECE-FAST with experiment T021 spanning from 1990-01-16T12:00:00 to 2139-12-16T12:00:00. The reference dataset is PSC with experiment GIOMAS spanning from 1991-01-01 to 2024-12-31.
Timestamp: 2025-10-30 15:19:17

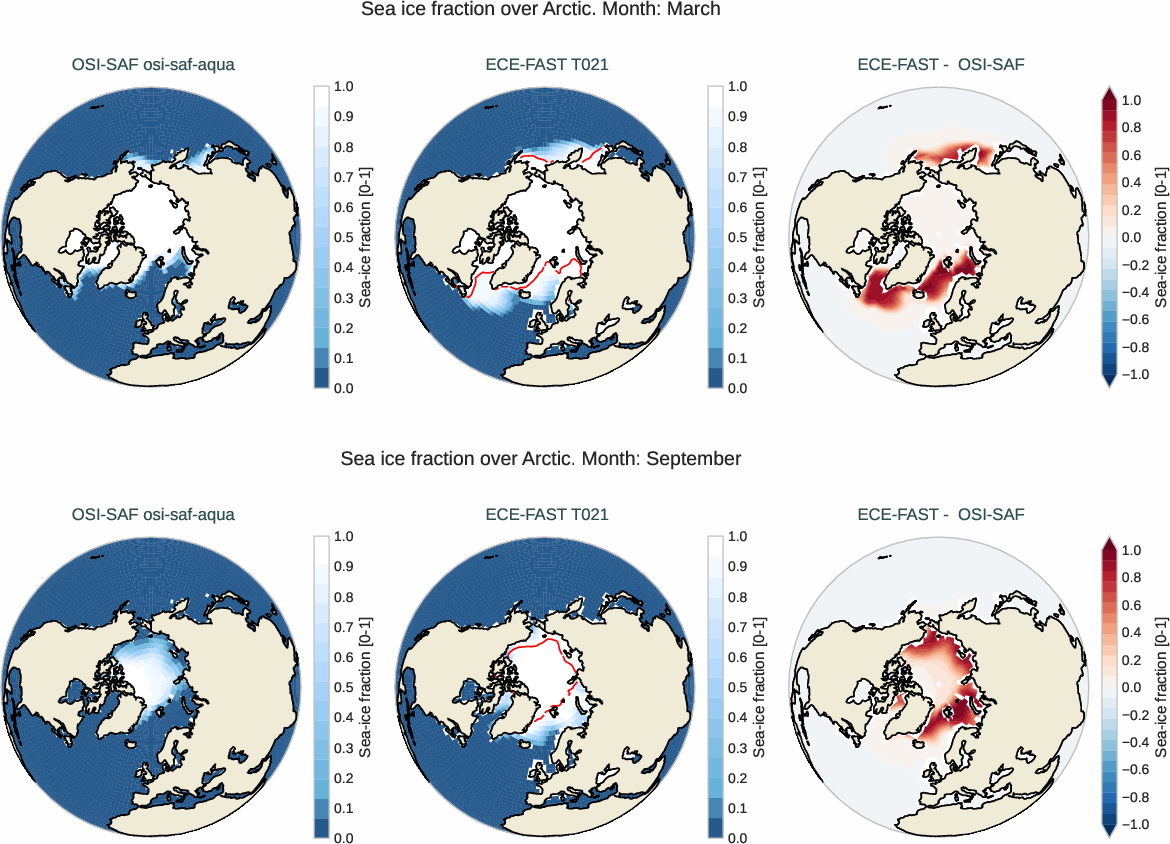

Description: Spatial map and total bias of the sea ice fraction climatology in the Arctic region. The model data is ECE-FAST with experiment T021 spanning from 1990-01-16T12:00:00 to 2139-12-16T12:00:00. The reference dataset is OSI-SAF with experiment osi-saf-aqua spanning from 1991-01-01 to 2024-12-31. The red contour line represents the regional sea ice fraction equal to 0.2.
Timestamp: 2025-10-30 15:17:33
