ece4-tuning - ECE-FAST - pal3 - r1 - pal3
Last updated: Thu Dec 4 17:23:00 UTC 2025
EC-EARTH4 test preindustrial
Climate metrics
Gregory plot

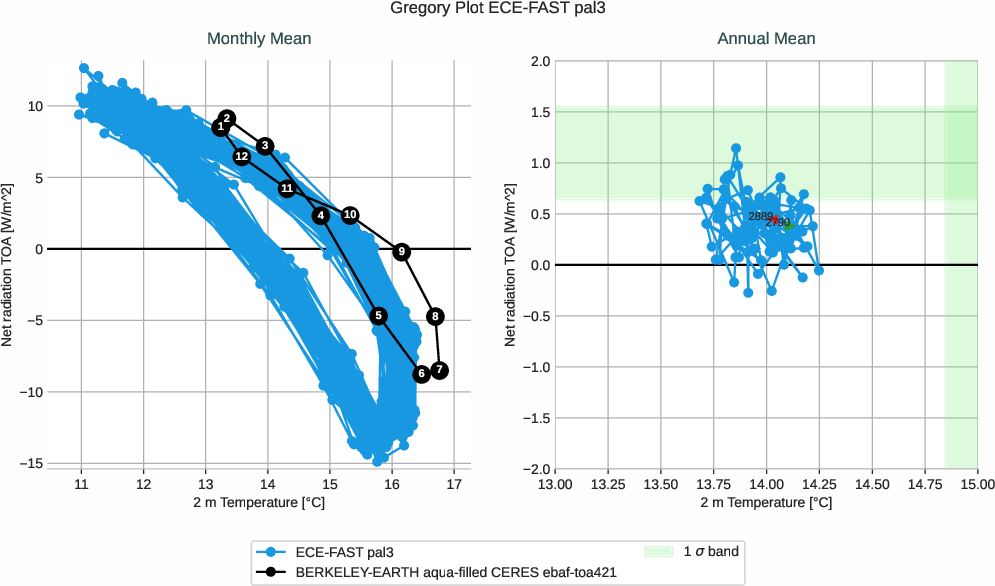

Description: Gregory plot of ECE-FAST pal3 using as a reference BERKELEY-EARTH aqua-filled (2 m temperature) and CERES ebaf-toa421 (net TOA). The model data are from 2790-01-01 to 2889-01-01. The reference 2 m temperature data are from 2001-01-01 to 2024-12-01. The reference net TOA data are from 2001-01-01 to 2024-12-01.
Timestamp: 2025-12-04 13:41:24
performance indices

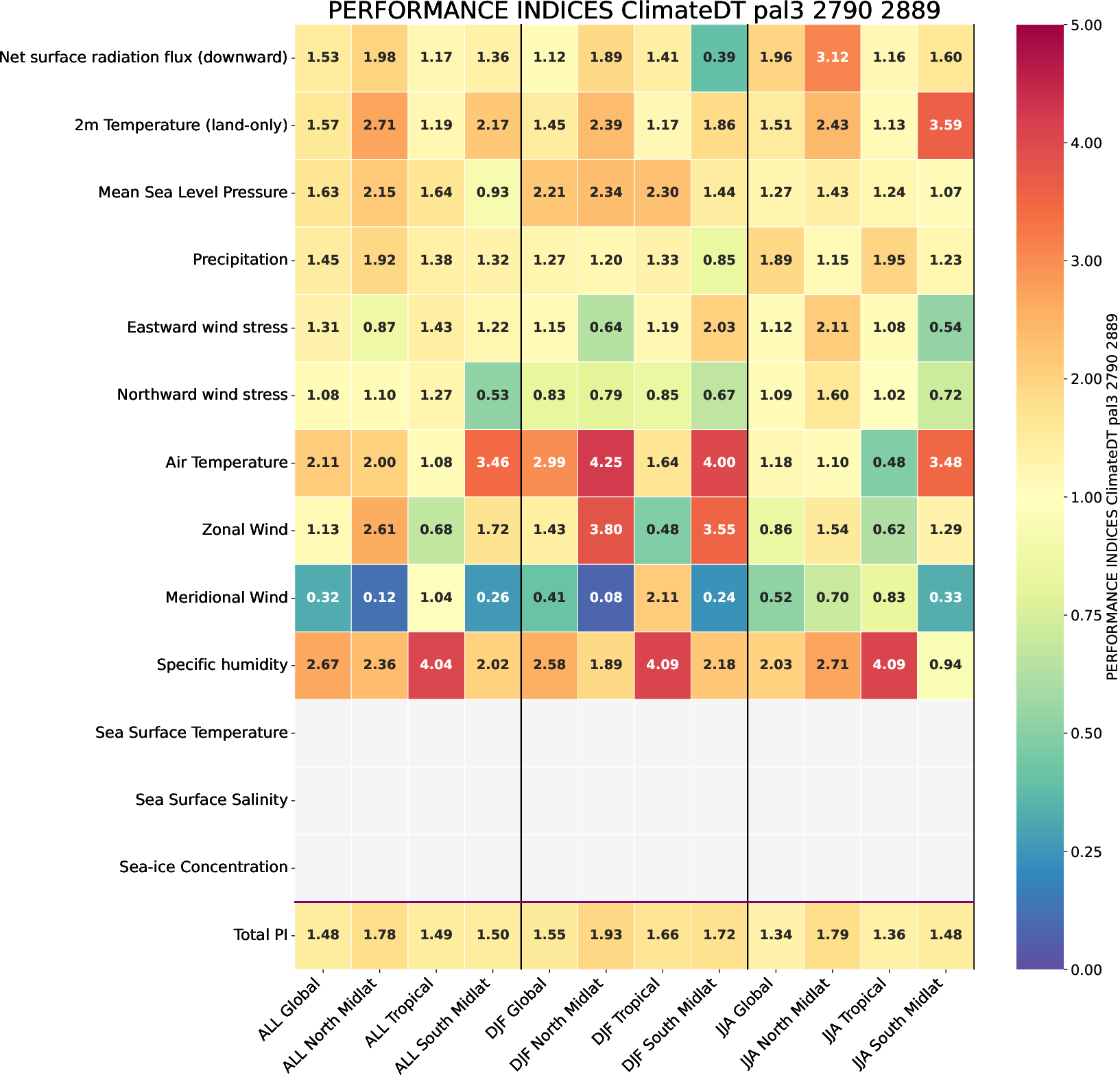

Description: Performance Indices normalized to the CMIP6 average for different regions and seasons for ECE-FAST pal3 from 2790-01-01 to 2889-12-31. Processed regions are Global (90°S-90°N), North Midlat (30°N-90°N), Tropical (30°S-30°N) and South Midlat (90°S-30°S).. Numbers < 1 imply better results than CMIP6 mean.
Timestamp: 2025-12-04 13:05:00
global biases

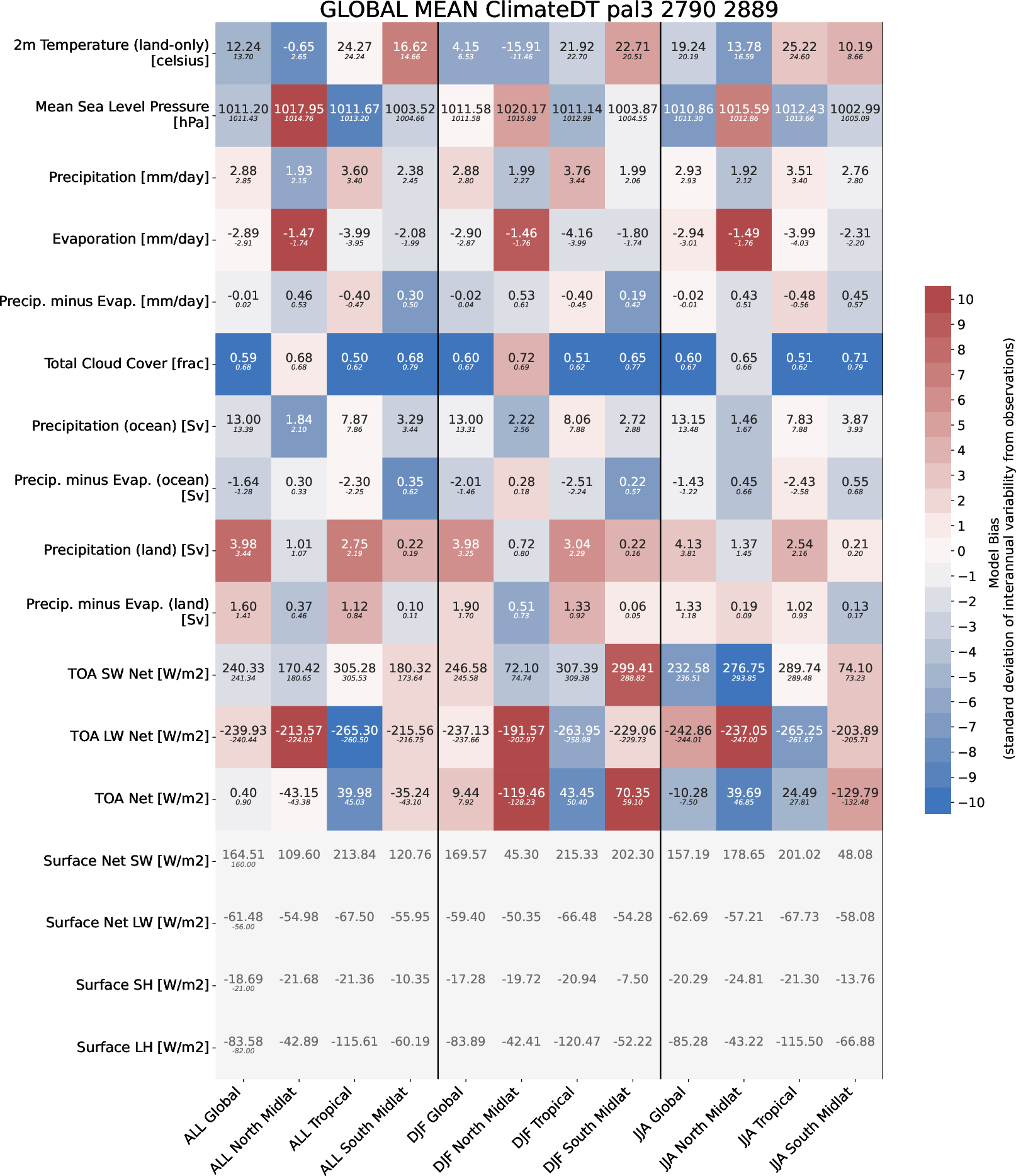

Description: Global mean biases normalized to observed interannual variability with respect to references for different regions and seasons for ECE-FAST pal3 from 2790-01-01 to 2889-12-31. Processed regions are Global (90°S-90°N), North Midlat (30°N-90°N), Tropical (30°S-30°N) and South Midlat (90°S-30°S).
Timestamp: 2025-12-04 12:08:54
Atmosphere 2D
annual bias

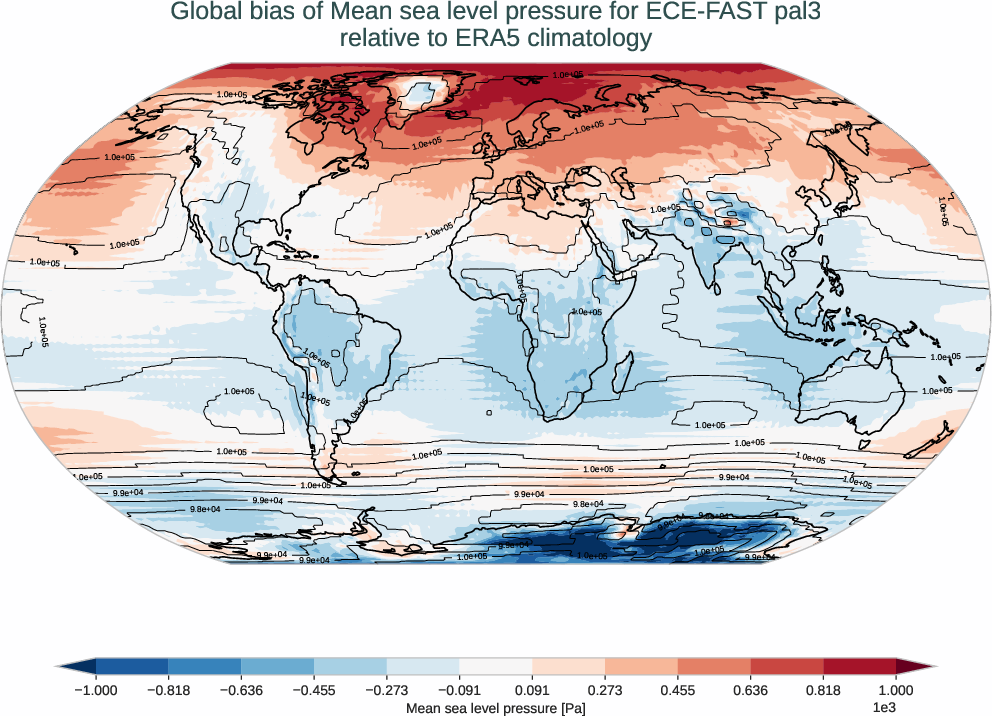

Description: Spatial map of global bias of Mean sea level pressure from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:14:54

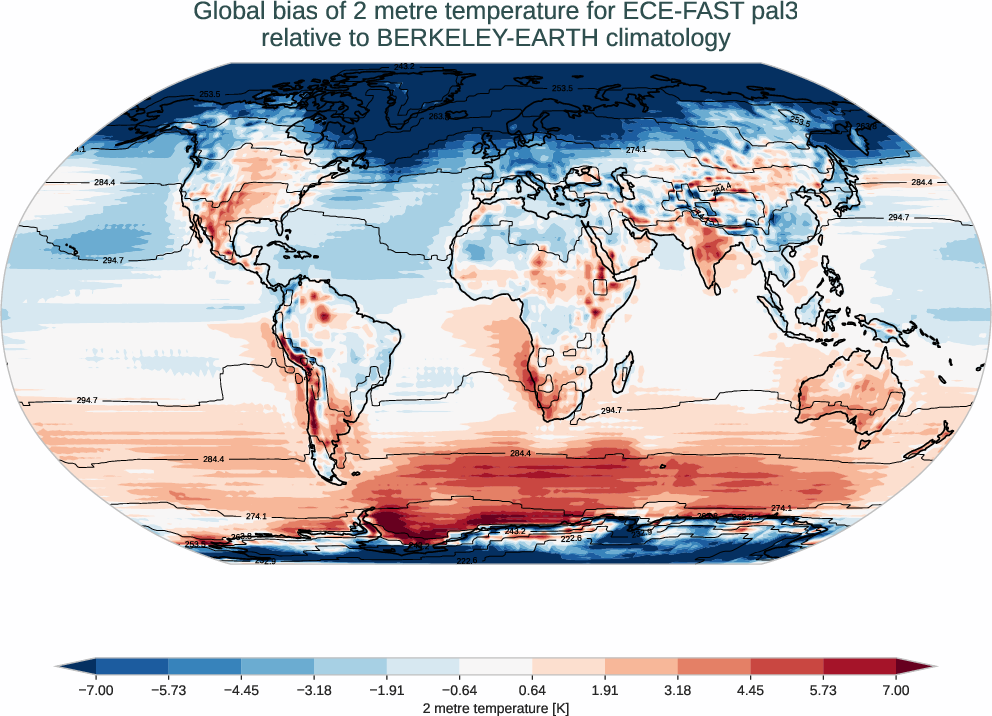

Description: Spatial map of global bias of 2 metre temperature from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with BERKELEY-EARTH from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 13:57:14
seasonal bias
Description: Seasonal bias map of Mean sea level pressure for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 14:15:08
Description: Seasonal bias map of 2 metre temperature for the ECE-FAST model, experiment pal3, using BERKELEY-EARTH as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 13:57:37
Atmosphere 3D
vertical bias
Description: Vertical bias plot of V component of wind across pressure levels from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:35:02
Description: Vertical bias plot of U component of wind across pressure levels from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:15:24

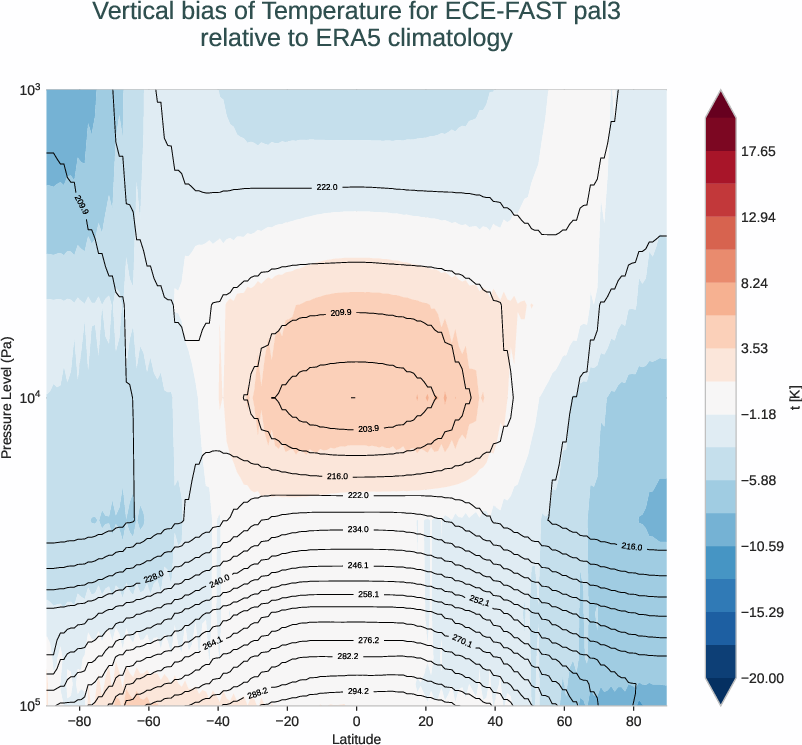

Description: Vertical bias plot of Temperature across pressure levels from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 13:57:42
Description: Vertical bias plot of Specific humidity across pressure levels from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:51:33
annual bias
Description: Spatial map of global bias of V component of wind at 850 hPa from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:34:09
Description: Spatial map of global bias of V component of wind at 200 hPa from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:34:45
Description: Spatial map of global bias of U component of wind at 850 hPa from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:14:48
Description: Spatial map of global bias of U component of wind at 200 hPa from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:15:08

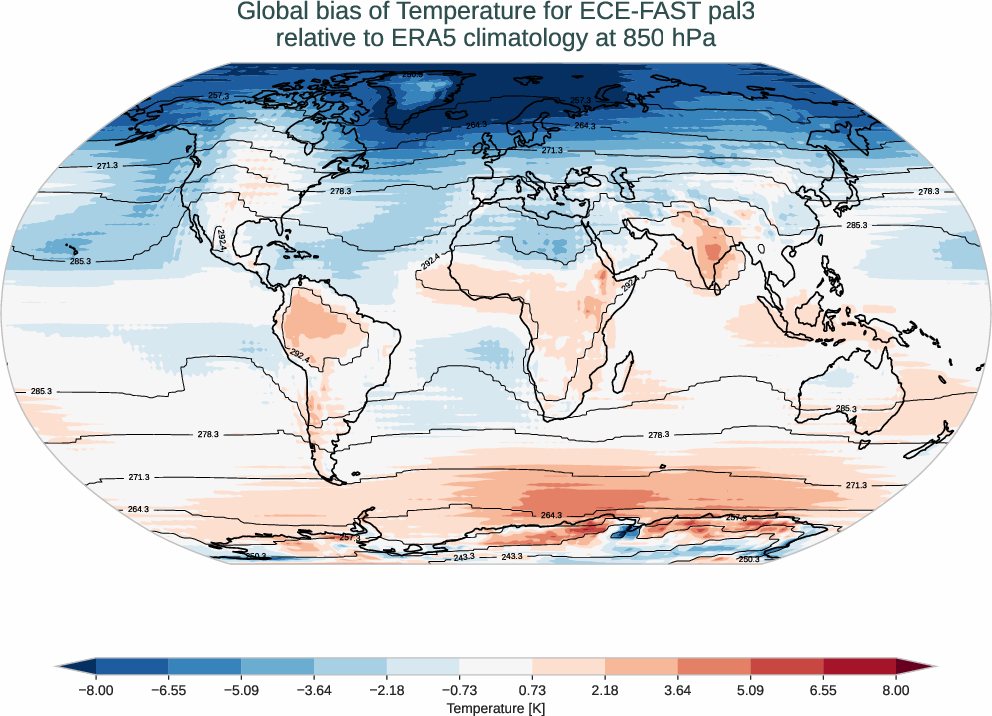

Description: Spatial map of global bias of Temperature at 850 hPa from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 13:57:18

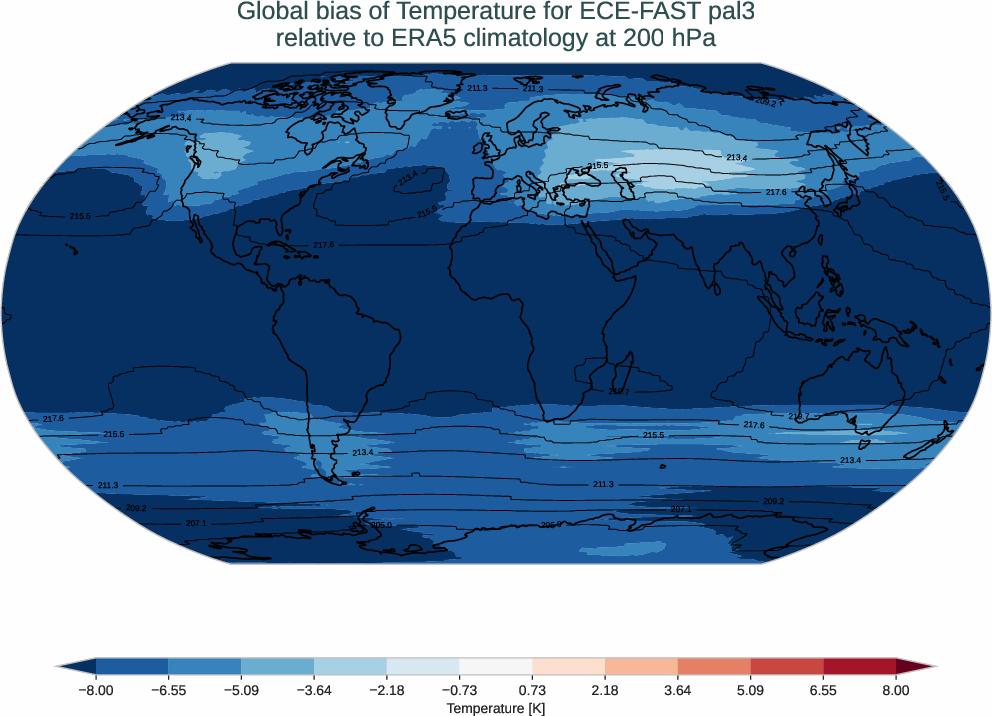

Description: Spatial map of global bias of Temperature at 200 hPa from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 13:57:34

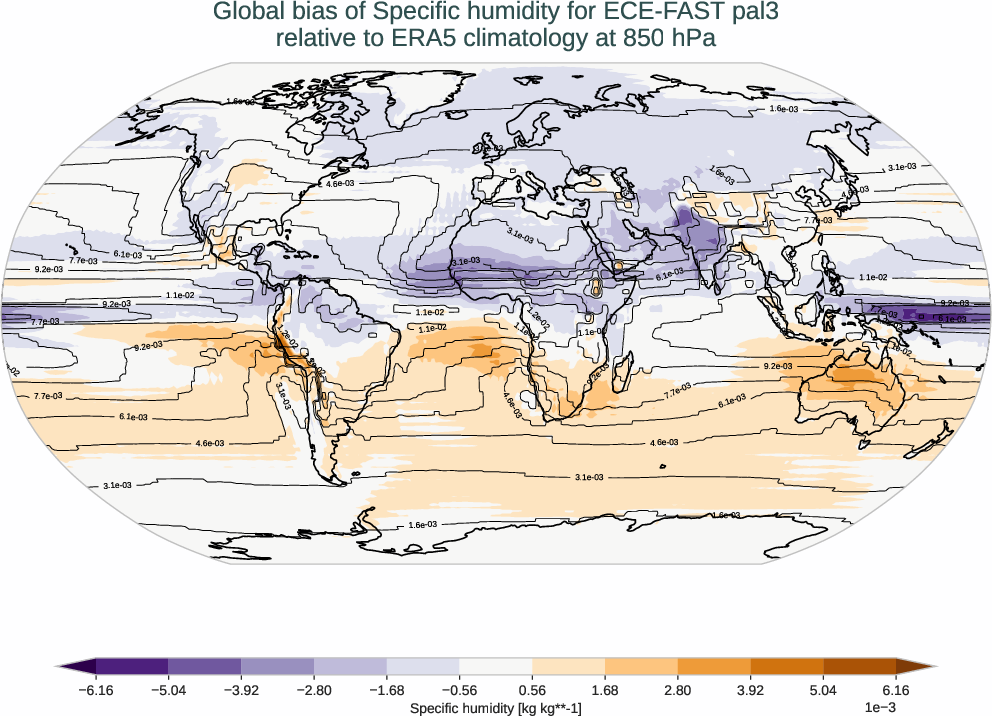

Description: Spatial map of global bias of Specific humidity at 850 hPa from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:51:22

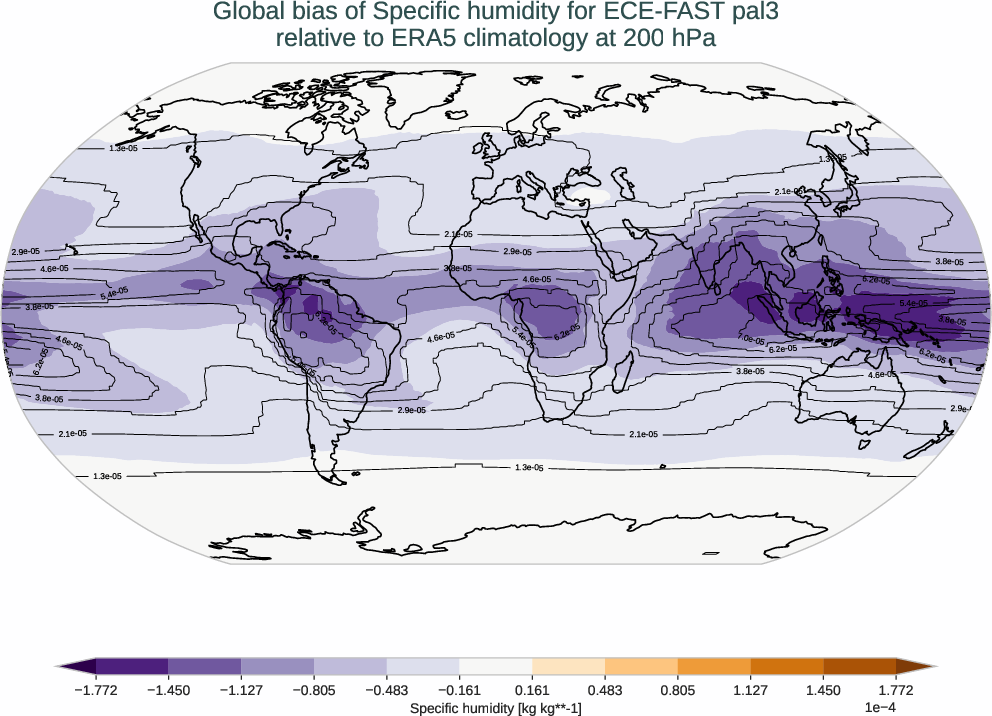

Description: Spatial map of global bias of Specific humidity at 200 hPa from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ERA5 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 14:51:29
seasonal bias

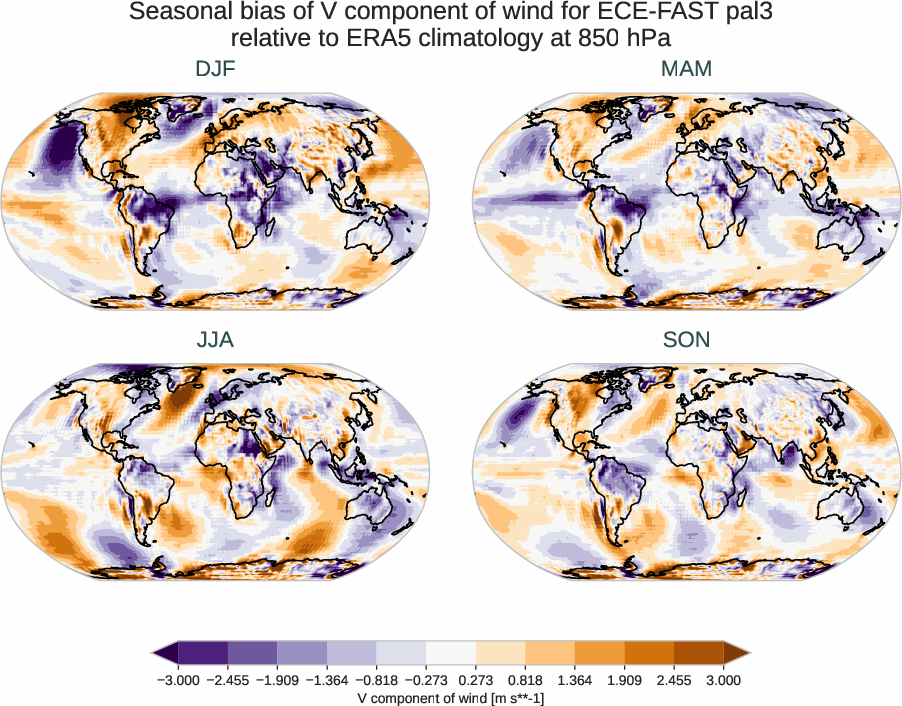

Description: Seasonal bias map of V component of wind at 850 hPa for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 14:34:39
Description: Seasonal bias map of V component of wind at 200 hPa for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 14:35:01

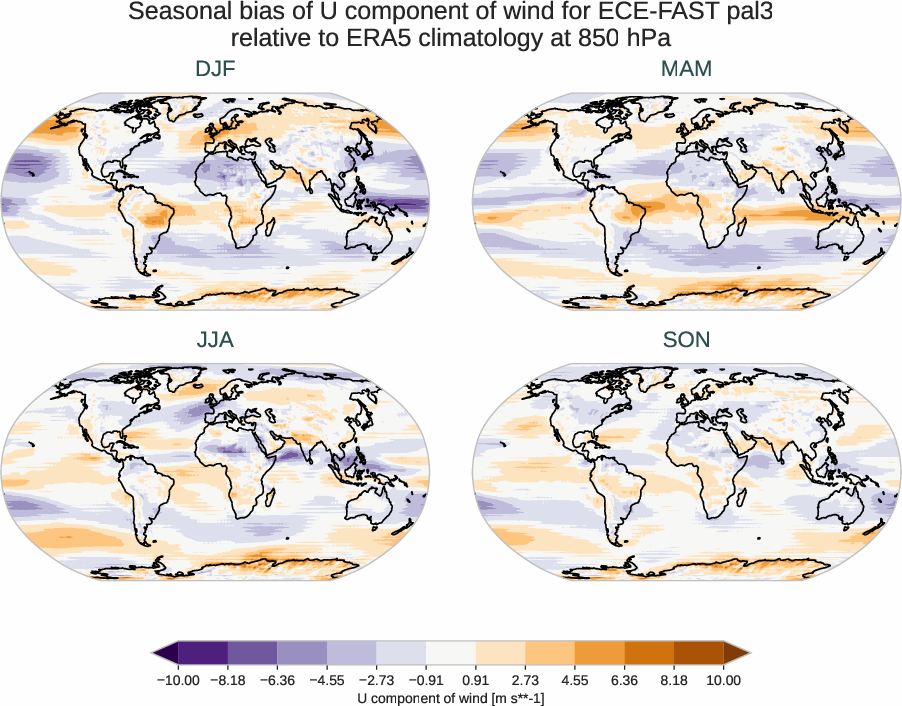

Description: Seasonal bias map of U component of wind at 850 hPa for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 14:15:03

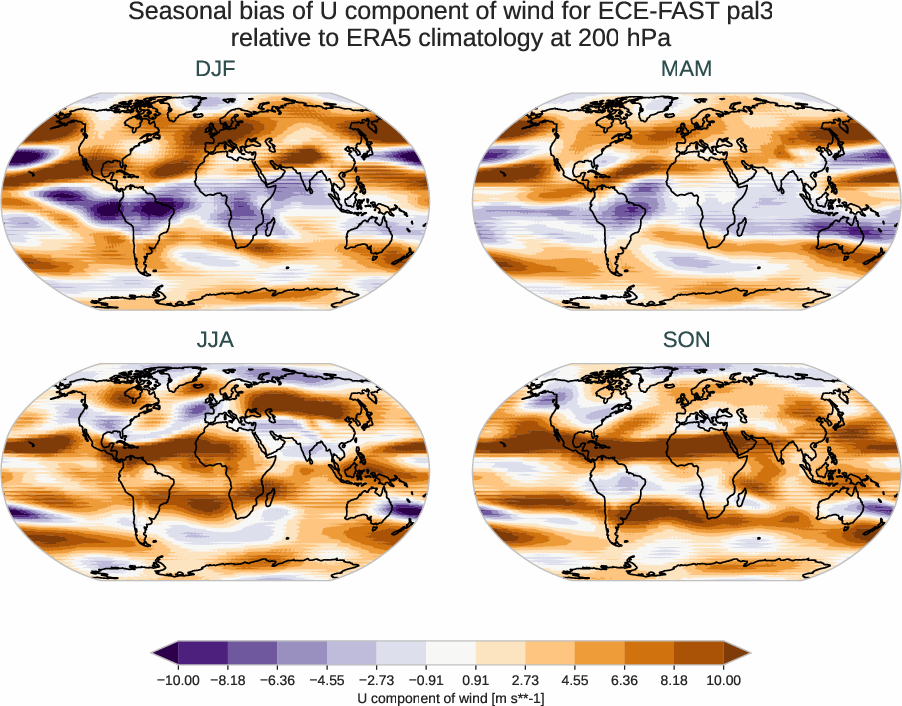

Description: Seasonal bias map of U component of wind at 200 hPa for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 14:15:23
Description: Seasonal bias map of Temperature at 850 hPa for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 13:57:32

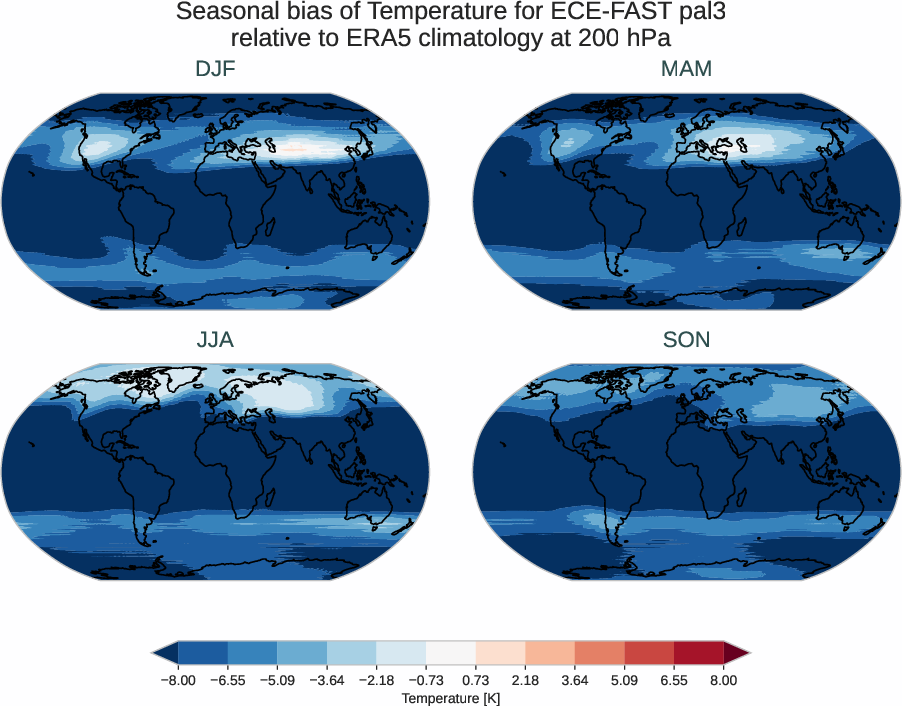

Description: Seasonal bias map of Temperature at 200 hPa for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 13:57:41
Description: Seasonal bias map of Specific humidity at 850 hPa for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 14:51:27
Description: Seasonal bias map of Specific humidity at 200 hPa for the ECE-FAST model, experiment pal3, using ERA5 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 14:51:32
Teleconnections
NAO

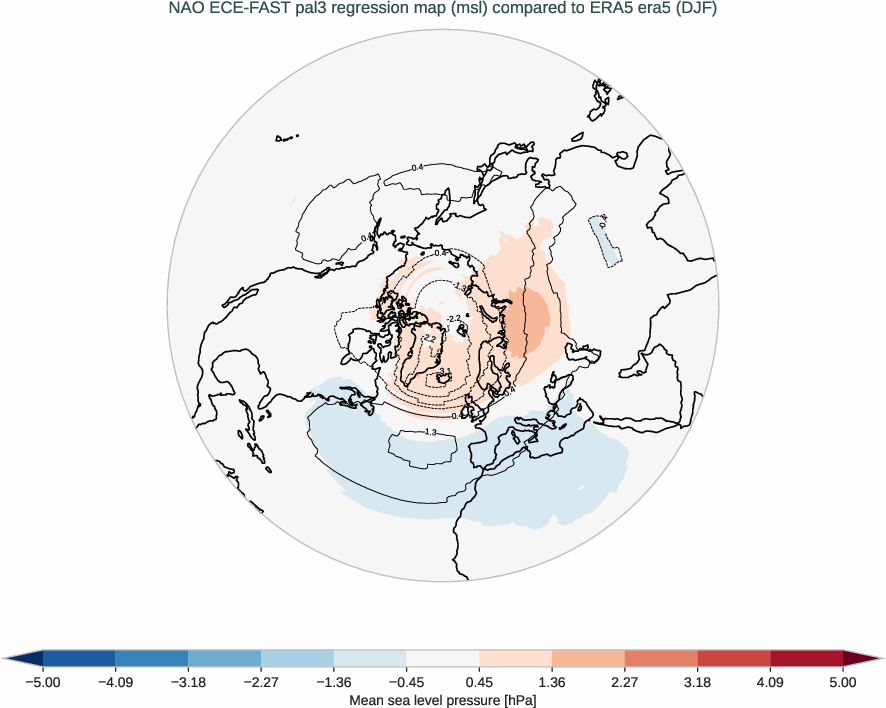

Description: NAO regression map (msl) ECE-FAST pal3 (DJF) compared to ERA5 era5. The contour lines are the model regression map and the filled contour map is the difference between the model and the reference regression map.
Timestamp: 2025-12-04 11:41:03

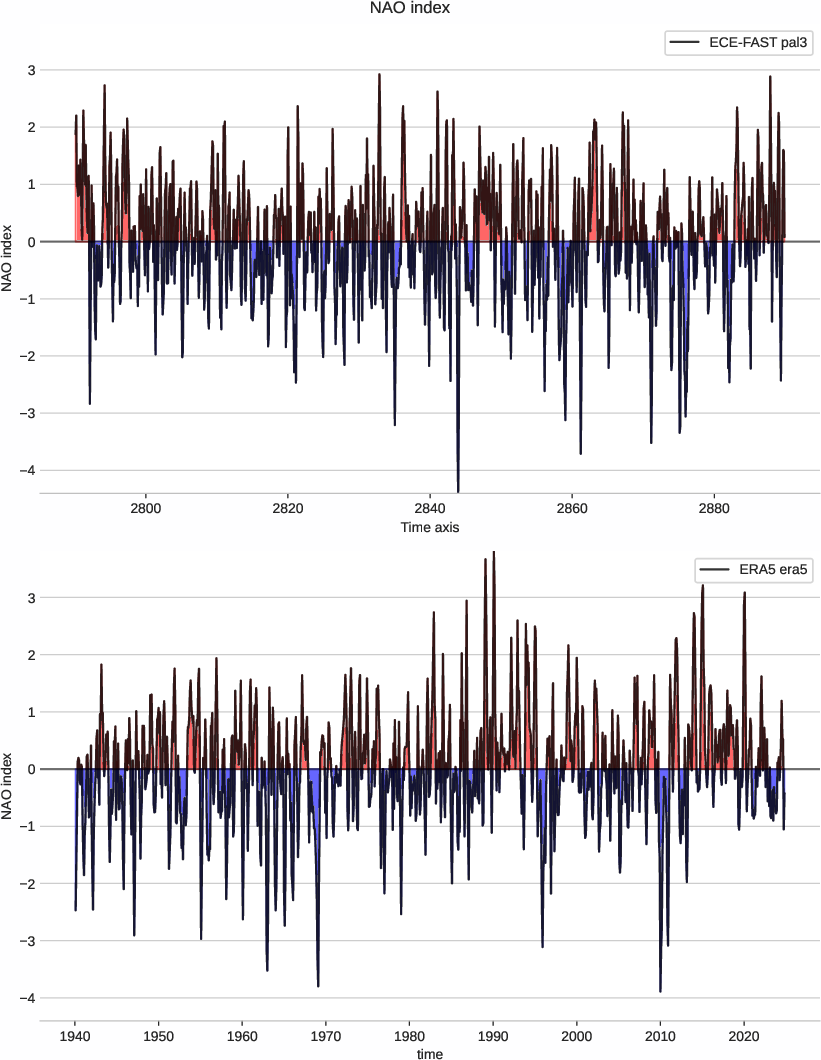

Description: NAO index for ECE-FAST pal3 using reference data from ERA5 era5.
Timestamp: 2025-12-04 11:40:45

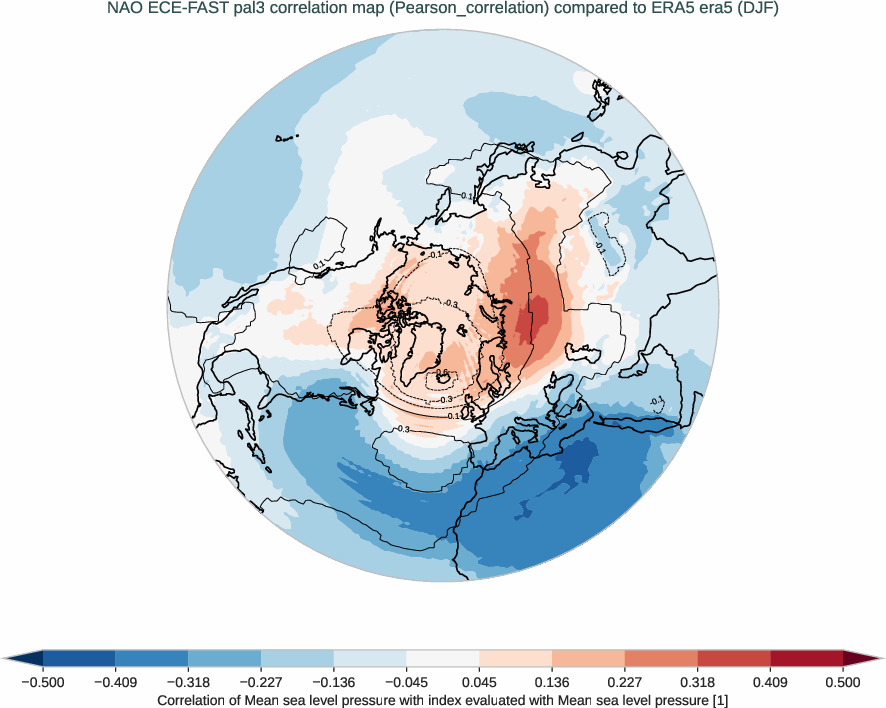

Description: NAO correlation map (Correlation of Mean sea level pressure with index evaluated with Mean sea level pressure) ECE-FAST pal3 (DJF) compared to ERA5 era5. The contour lines are the model regression map and the filled contour map is the difference between the model and the reference correlation map.
Timestamp: 2025-12-04 11:41:03
ENSO

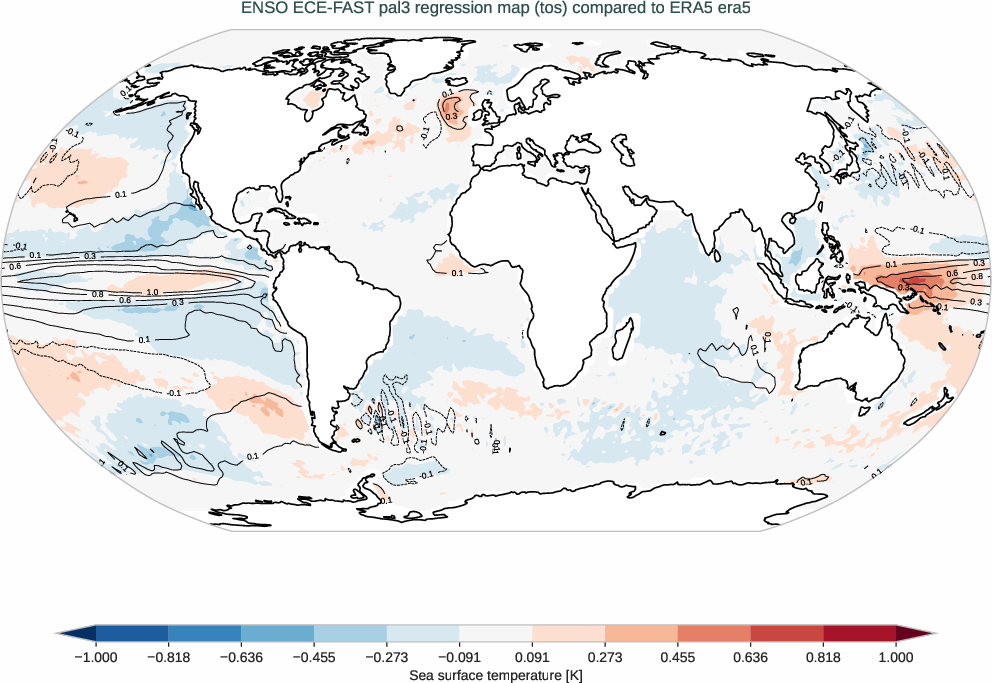

Description: ENSO3.4 regression map (tos) ECE-FAST pal3 compared to ERA5 era5. The contour lines are the model regression map and the filled contour map is the difference between the model and the reference regression map.
Timestamp: 2025-12-04 15:20:32
Description: ENSO3.4 index for ECE-FAST pal3 using reference data from ERA5 era5.
Timestamp: 2025-12-04 15:20:11

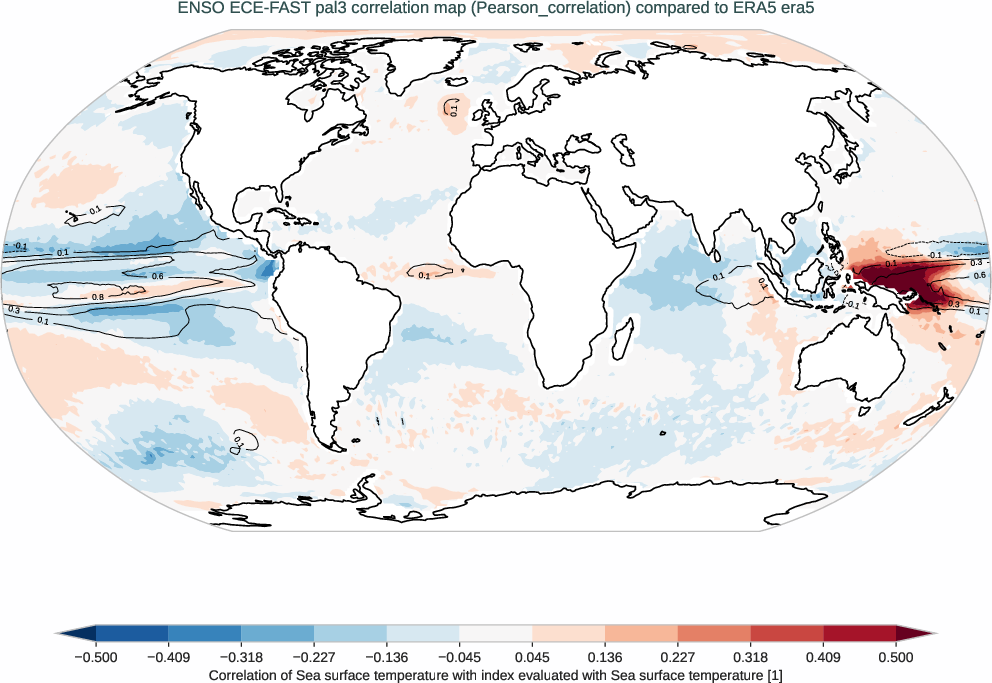

Description: ENSO3.4 correlation map (Correlation of Sea surface temperature with index evaluated with Sea surface temperature) ECE-FAST pal3 compared to ERA5 era5. The contour lines are the model regression map and the filled contour map is the difference between the model and the reference correlation map.
Timestamp: 2025-12-04 15:20:32
Ocean 2D
annual bias

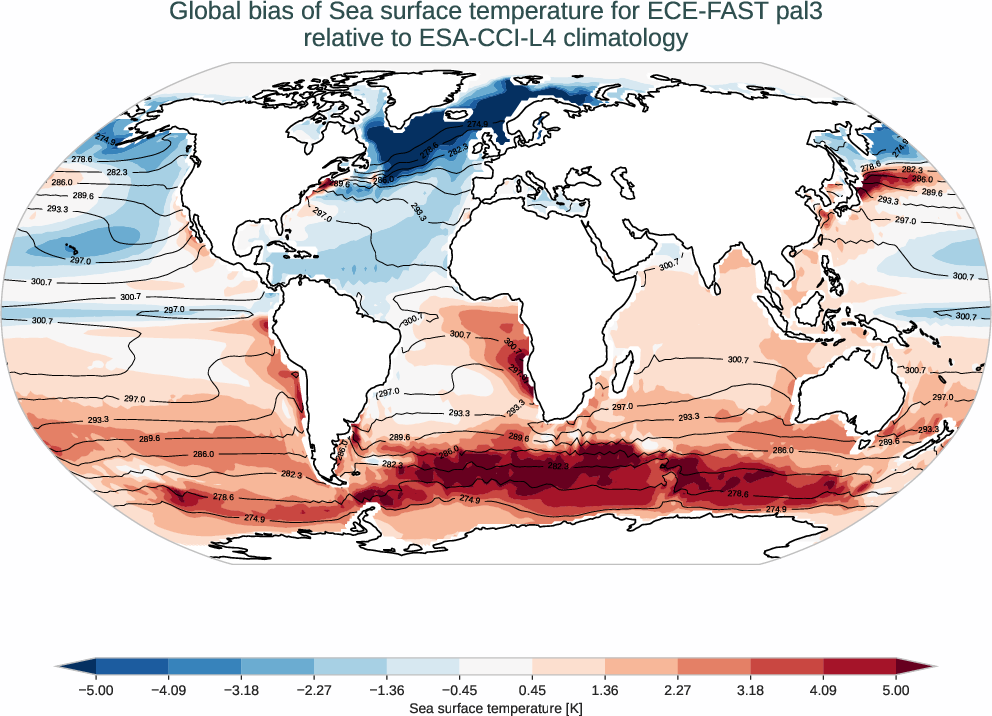

Description: Spatial map of global bias of Sea surface temperature from 2790-01-01 to 2889-12-31 for the ECE-FAST model, experiment pal3, with ESA-CCI-L4 from 1990-01-01 to 2020-12-31 used as reference data.
Timestamp: 2025-12-04 15:20:02
seasonal bias

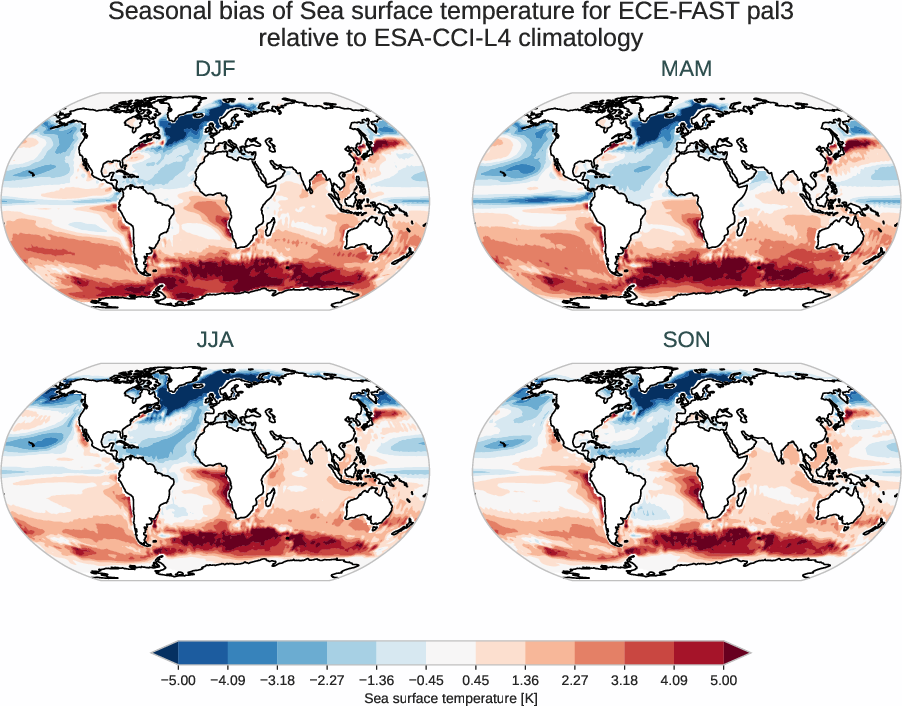

Description: Seasonal bias map of Sea surface temperature for the ECE-FAST model, experiment pal3, using ESA-CCI-L4 as reference data. The bias is computed for each season over the period from 2790-01-01 to 2889-12-31 for the model and from 1990-01-01 to 2020-12-31 for the reference data.
Timestamp: 2025-12-04 15:20:09
Sea Ice
time series
Description: Time series of the Sea ice volume integrated over Arctic and Antarctic regions. ECE-FAST pal3 monthly-ice from 2790-01-01 to 2889-12-31 is used as model data. PSC PIOMAS monthly and PSC GIOMAS monthly are used as reference data for the respective regions. Reference data std ranges from 1990-01-01 to 2020-12-31.
Timestamp: 2025-12-04 16:58:16

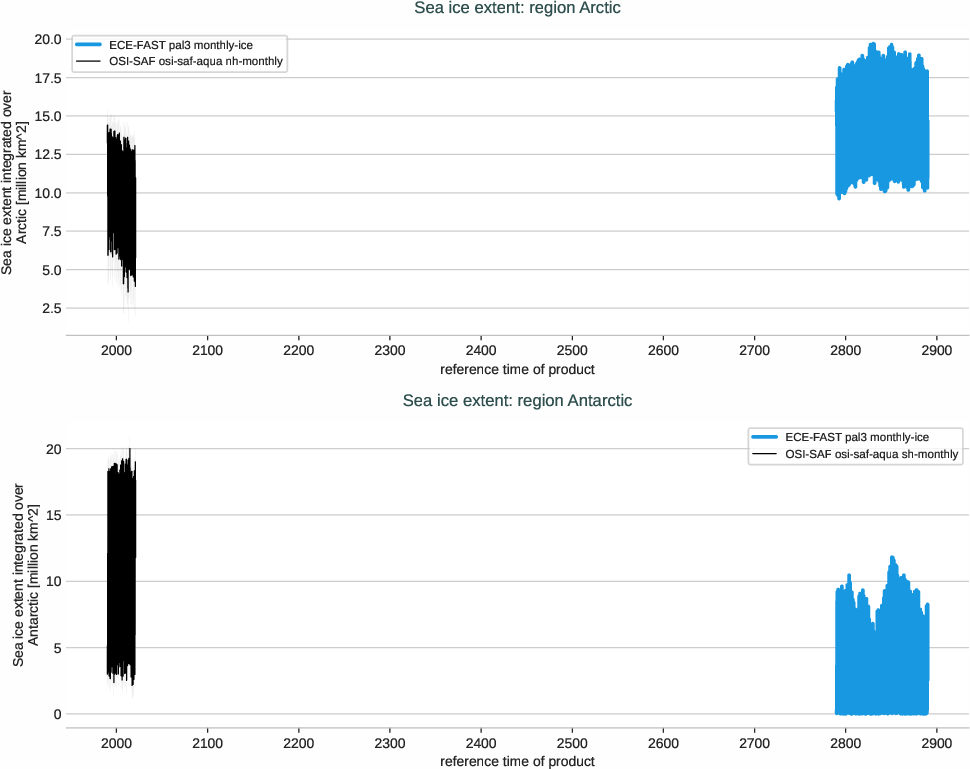

Description: Time series of the Sea ice extent integrated over Arctic and Antarctic regions. ECE-FAST pal3 monthly-ice from 2790-01-01 to 2889-12-31 is used as model data. OSI-SAF osi-saf-aqua nh-monthly and OSI-SAF osi-saf-aqua sh-monthly are used as reference data for the respective regions. Reference data std ranges from 1990-01-01 to 2020-12-31.
Timestamp: 2025-12-04 16:42:38
seasonal cycle

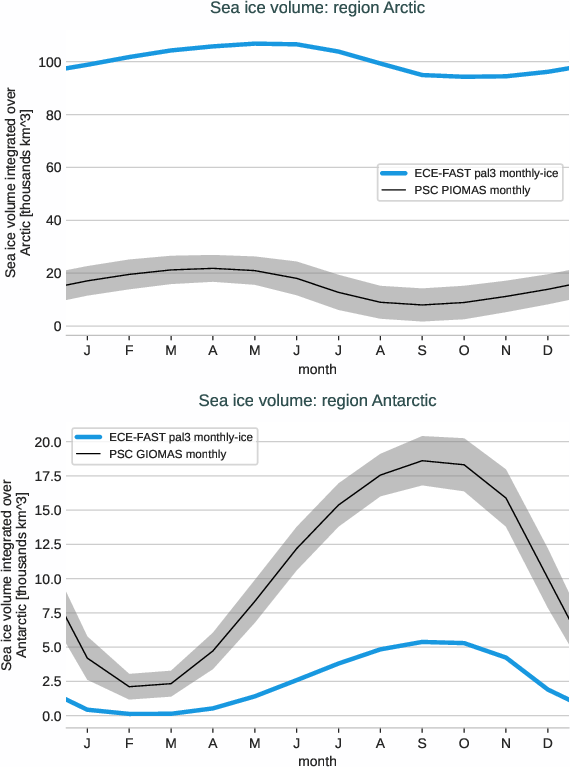

Description: Seasonal cycle of the Sea ice volume integrated over Arctic and Antarctic regions. ECE-FAST pal3 monthly-ice from 2790-01-01 to 2889-12-31 is used as model data. PSC PIOMAS monthly and PSC GIOMAS monthly are used as reference data for the respective regions. Reference data std ranges from 1990-01-01 to 2020-12-31.
Timestamp: 2025-12-04 17:03:38
Description: Seasonal cycle of the Sea ice extent integrated over Arctic and Antarctic regions. ECE-FAST pal3 monthly-ice from 2790-01-01 to 2889-12-31 is used as model data. OSI-SAF osi-saf-aqua nh-monthly and OSI-SAF osi-saf-aqua sh-monthly are used as reference data for the respective regions. Reference data std ranges from 1990-01-01 to 2020-12-31.
Timestamp: 2025-12-04 16:47:24
bias
Description: Spatial map and total bias of the sea ice thickness climatology in the Arctic region. The model data is ECE-FAST with experiment pal3 spanning from 2790-01-01 to 2889-12-31. The reference dataset is PSC with experiment PIOMAS spanning from 1990-01-01 to 2020-12-31.
Timestamp: 2025-12-04 17:09:06

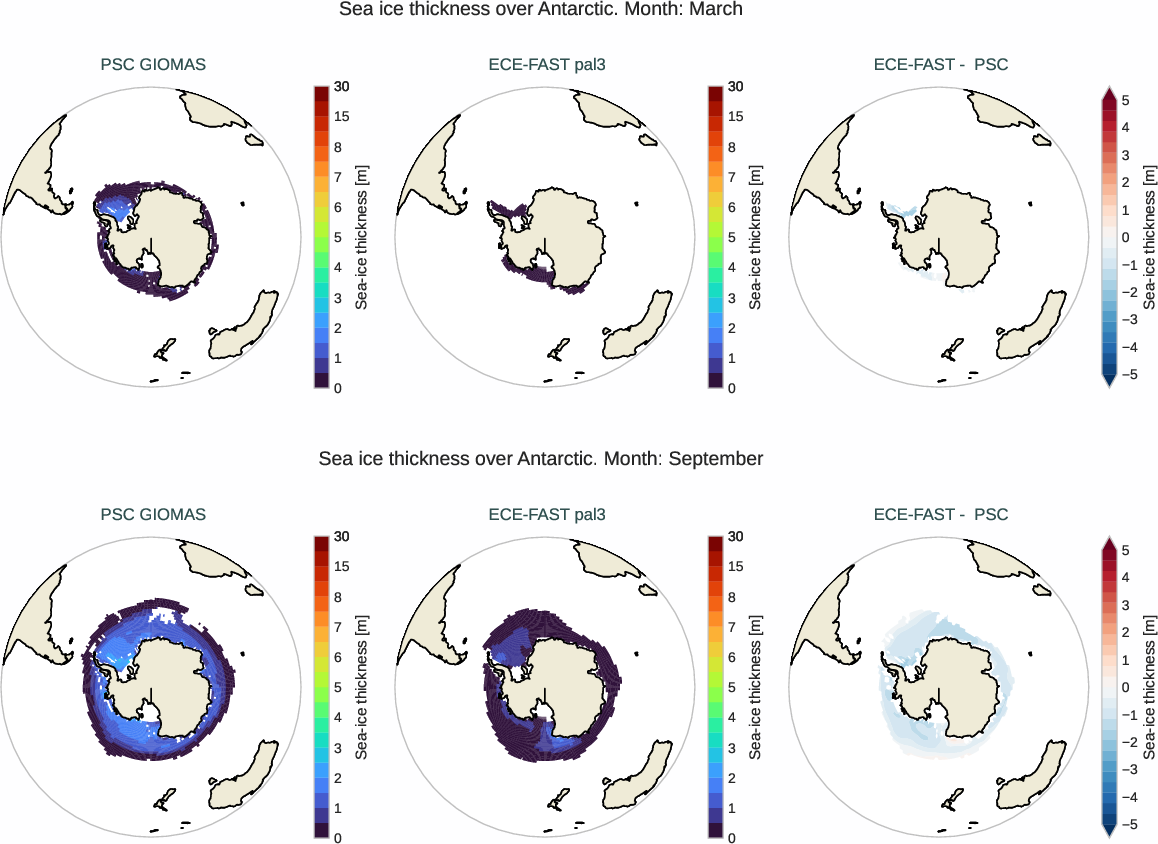

Description: Spatial map and total bias of the sea ice thickness climatology in the Antarctic region. The model data is ECE-FAST with experiment pal3 spanning from 2790-01-01 to 2889-12-31. The reference dataset is PSC with experiment GIOMAS spanning from 1990-01-01 to 2020-12-31.
Timestamp: 2025-12-04 17:09:16
Description: Spatial map and total bias of the sea ice fraction climatology in the Arctic region. The model data is ECE-FAST with experiment pal3 spanning from 2790-01-01 to 2889-12-31. The reference dataset is OSI-SAF with experiment osi-saf-aqua spanning from 1990-01-01 to 2020-12-31. The red contour line represents the regional sea ice fraction equal to 0.2.
Timestamp: 2025-12-04 16:52:33

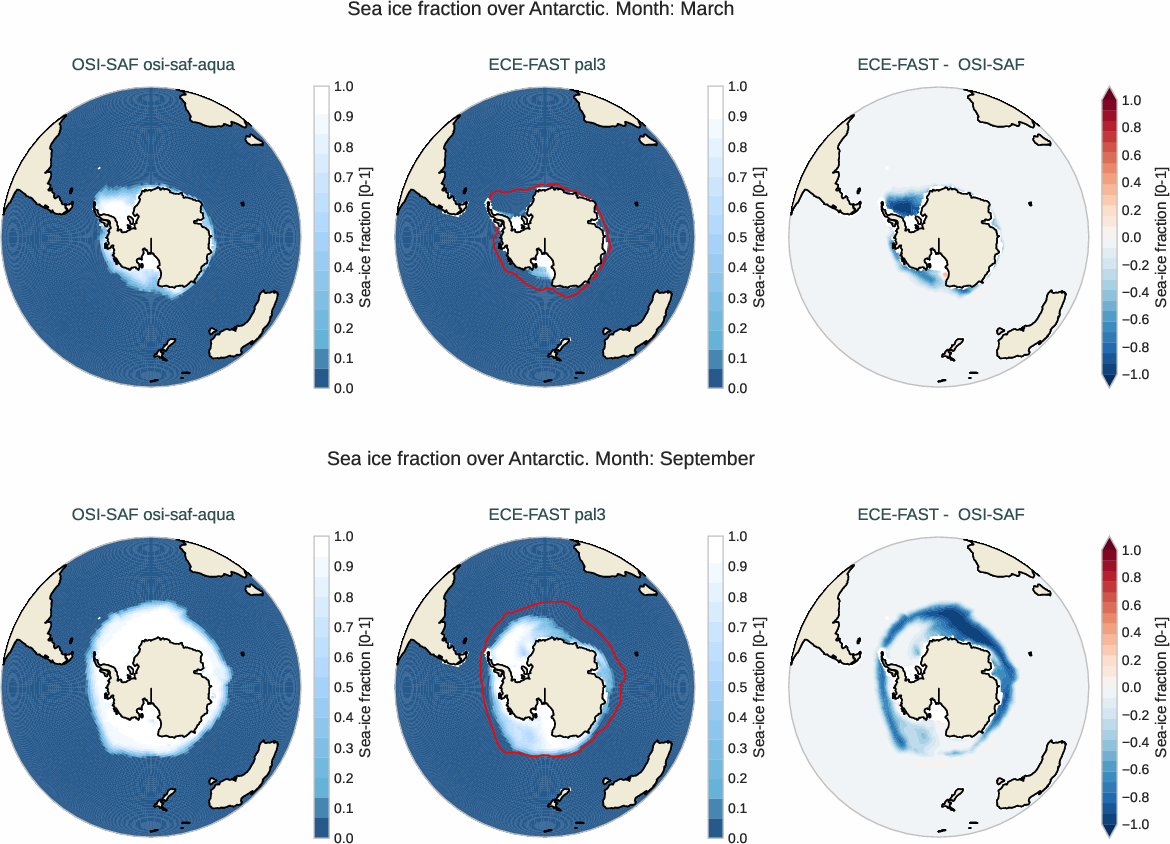

Description: Spatial map and total bias of the sea ice fraction climatology in the Antarctic region. The model data is ECE-FAST with experiment pal3 spanning from 2790-01-01 to 2889-12-31. The reference dataset is OSI-SAF with experiment osi-saf-aqua spanning from 1990-01-01 to 2020-12-31. The red contour line represents the regional sea ice fraction equal to 0.2.
Timestamp: 2025-12-04 16:52:46
